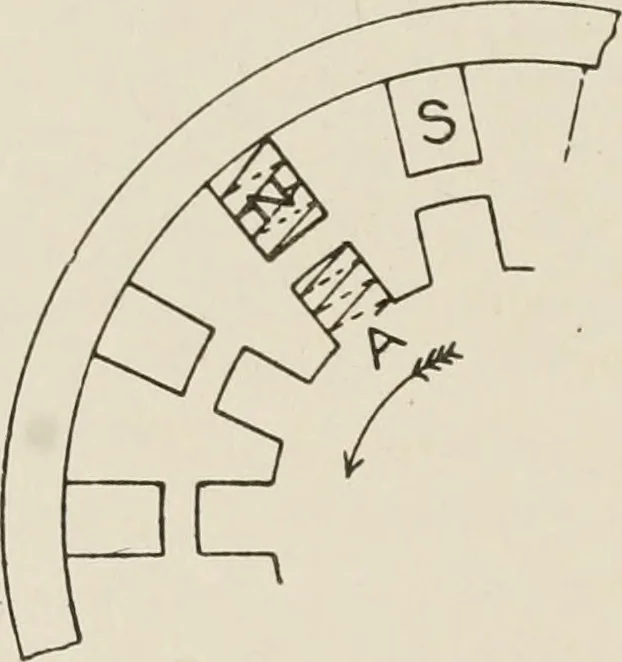

ture current is to oppose the magnetizing action ofthe field coils. On the other hand, the effect of a leading currentin the armature is to help the magnetizing action of the field coils.In an alternator the invisible variations in phase differencebetween the armature current and the electromotive… … Fig. 100. Portion of Armatureand Field Coil for Single-Phase Alternator 116 ALTERNATING-CURRENT MACHINERY 105 Fig. 109 represents a single-phase alternator of the revolvingarmature type running in the direction indicated by the curvedarrow. The electromotive force induced in the armature coil Ais…
