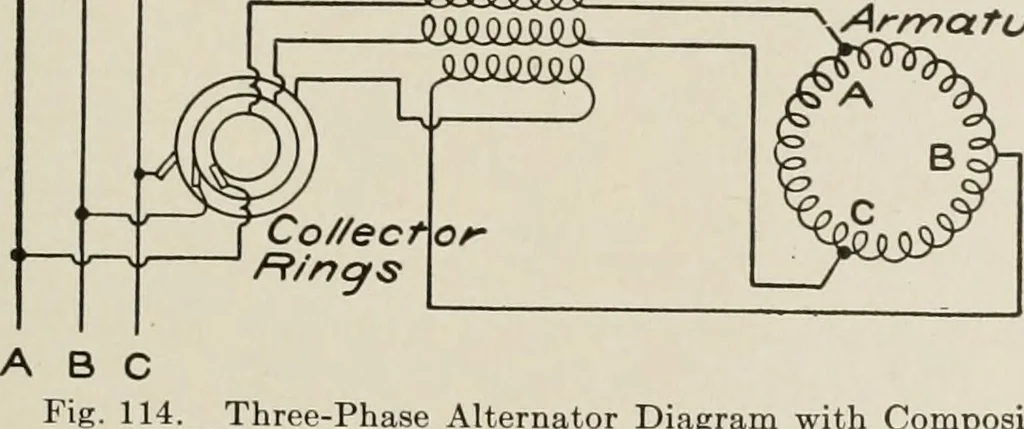

sformer Armature Aj Bj A2 B Fig. 113. Two-Phase Alternator Diagram with Composite FieldExcitation with Balanced Receiving Circuits ing ring; and the other armature terminal connects to the primaryof a transformer T, and thence to the other collecting ring. Theterminals of the secondary coil of T… … Three-Phase Alternator Diagram with CompositeField Excitation with Balanced Receiving Circuits Composite field excitation is, however, not satisfactory in caseof polyphase alternators, unless the receiving circuits supplied from thealternators are approximately balanced. Unbalancing of the receiv-…
