Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 146

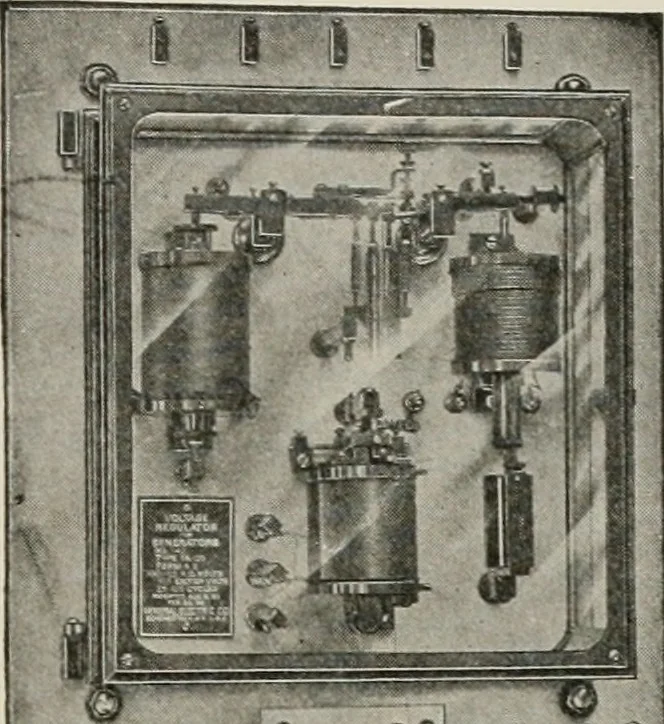

nt theregulator contacts are automatically opened which causes the fieldcurrent of the exciter to again pass through the rheostat. Theresulting decrease in voltage is quickly checked by another closingof the regulator contacts, which continue to vibrate to and frothus keeping the generator voltage… … Fr int View of TirrillKegulator view of the regulator showing the resistance box and iron bracketsfor mounting it at the end of theswitchboard if desired, although it isrecommended that it be mounted di-rectly on the switchboard. A diagramof the electrical connections for a Tirrillregulator with an…
Electrical engineering
