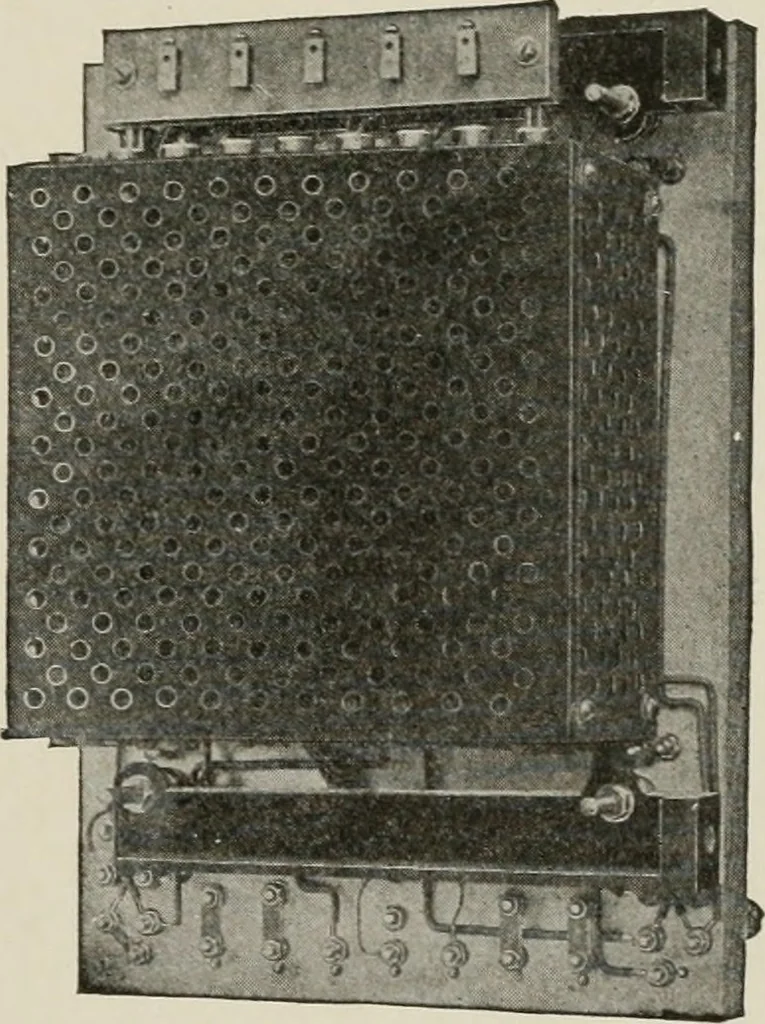

rrent generator orbus bars. There is an adjustablecompensating winding on thealternating-current magnet con-nected through a current trans-former to the principal lightingfeeder. The object of this wind-ing is to raise the voltage of the al-ternating-current bus bars as theload increases. The… … Fig. 116. Back View of TirrillRegulator 127 116 ALTERNATING-CURRENT MACHINERY The relay consists of a U-shaped magnet core having a differ-ential winding and a pivoted armature controlling the contactswhich open and close the shunt circuit across the exciter field rheostat.One of the differential…
