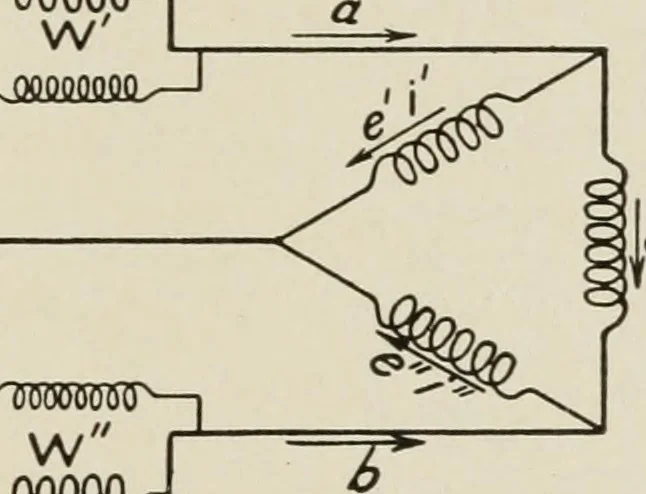

quired. Three-Wire Three-Phase. When three mains are used in athree-phase system, two wattmeters are sufficient for the com-plete measurement of the power delivered to any three-phase receiv-ing unit, whether the receiving circuit is balanced or unbalanced, orwhether it is connected Y or A. Fig.… … er \m^ Fig. 138. Diagram of Power Connection for Three-WireThree-Phase System total power delivered independent of balance or lag. When thecurrent lag in the circuit is less than 60 degrees, /. e., when the powerfactor is greater than 0.5, then the arithmetical sum of the readingsof the two…
