The investigation of a gasoline automobile lighting and starting set (1914)
Shepperd, James Douglass · leaf 22

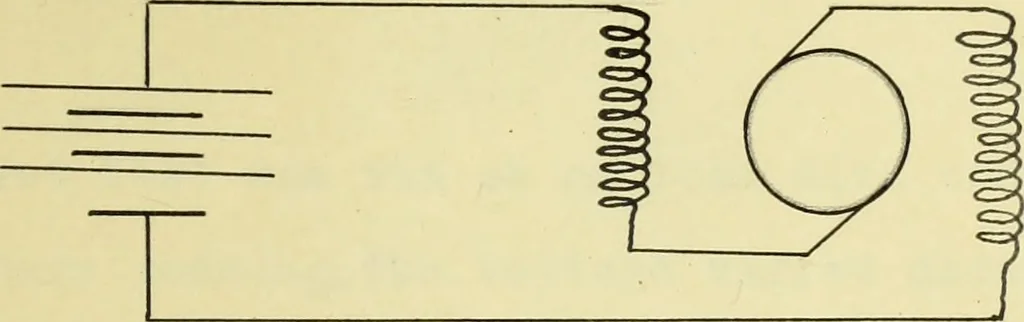

Fig. -6- The motor as constructed has a laminated magnet casing withno joints in the magnetic circuit except for the air gap.It isa two pole series machine with the field coil3 divided into twoparts,so that the path of the current was through one side ofthe field to the armature,through the… … Fig 3 The armature is wave wound in ninteen slots with an equalnumber of commutator segments.The shaft is supported in ballbearings,set in aluminum end frame and would be connected to theengine probably at the flywheel through a set of planetaryreduction gears and an over running clutch which will…
