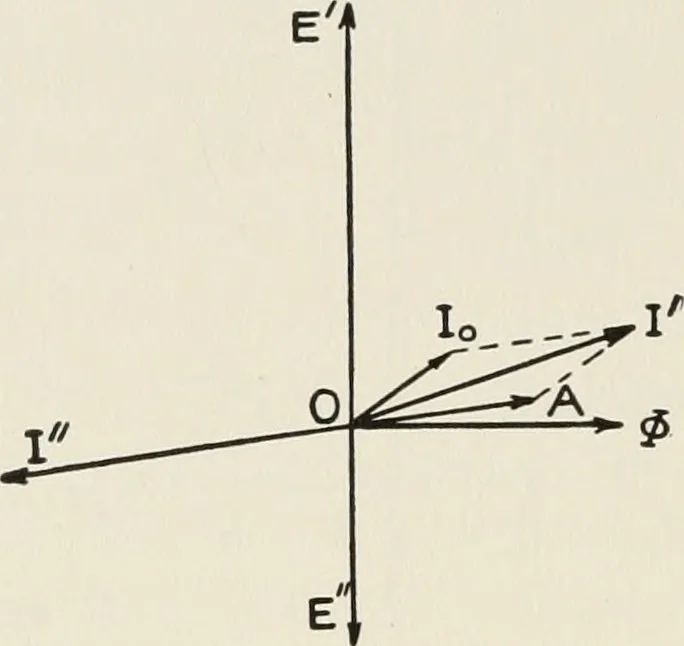

Fig. 205. Clock Diagram for Transformer with Load 253 240 ALTERNATING-CURRENT MACHINERY … Fig. 206. Clock Diagram for Trans-former with Load—highly Induc-tive Receiving Circuit load the primary current is O/o; and when the transformer is loaded(non-inductive load) the primary current becomes 0/. Case (c) JJith Load, ReceivingCircuit Highly Inductive. In Fig.206 the line 01 represents…
