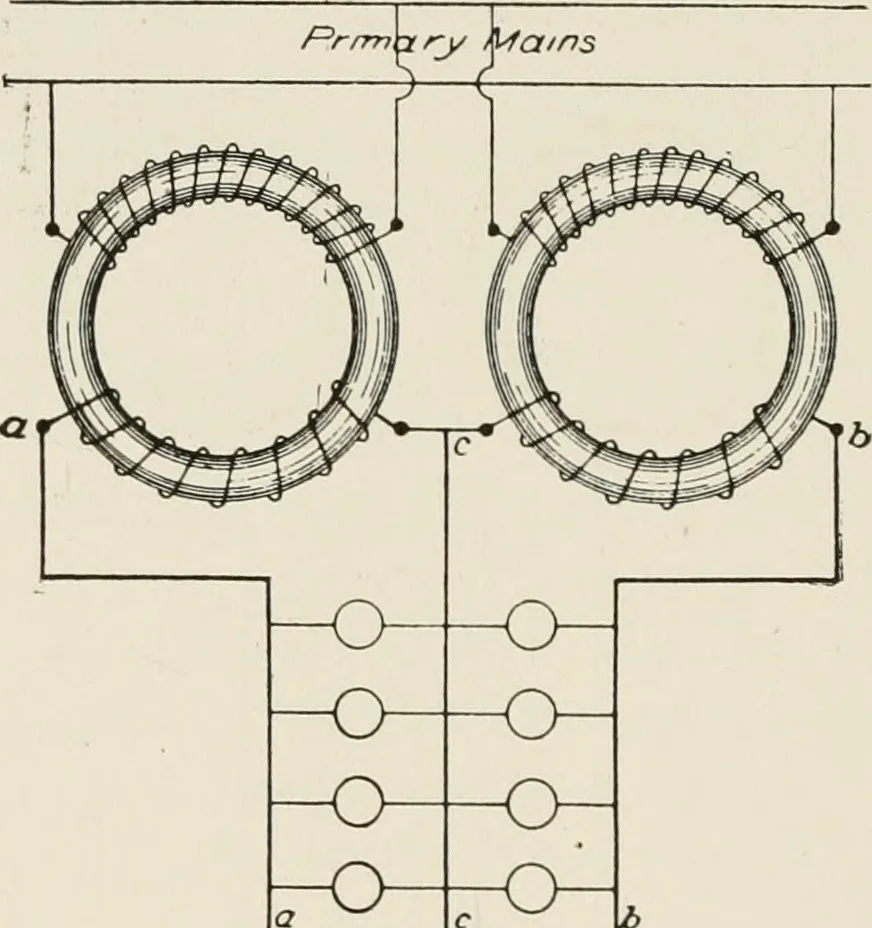

ting-current distribution. Fig. 213 shows twotransformers properly connected for supplying current to a three-wire system; and Fig. 214 shows two transformers improperly con-nected for supplying current to a three-wire system. In the properconnection, the middle secondary main c carries only the… … Fig. 214. -/OO VO/T3- • -lOOi^olfi • (- — — o Vo/fi »i Improper Transformer Connectionsto a Three-Wire System double voltage between the outside secondary mains and the im-proper connection gives zero voltage between outside secondarymains. The Edison three-wire system must not be confused with…
