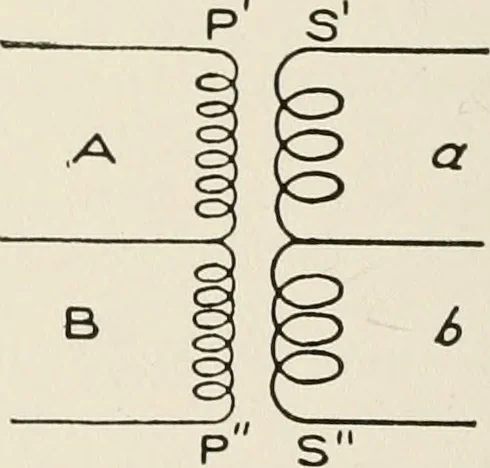

Fig. 220. Transformer Con-nections on a Two-PhaseSystem … Fig. 221. Transformer Con-nections on a Three-WireTwo-Phase System sion systems of which the separate and distinct electromotive forcesor currents are maintained in definite phase relations with each other bymechanical connections in the generator. Step-up or step-down trans-formation in a…
