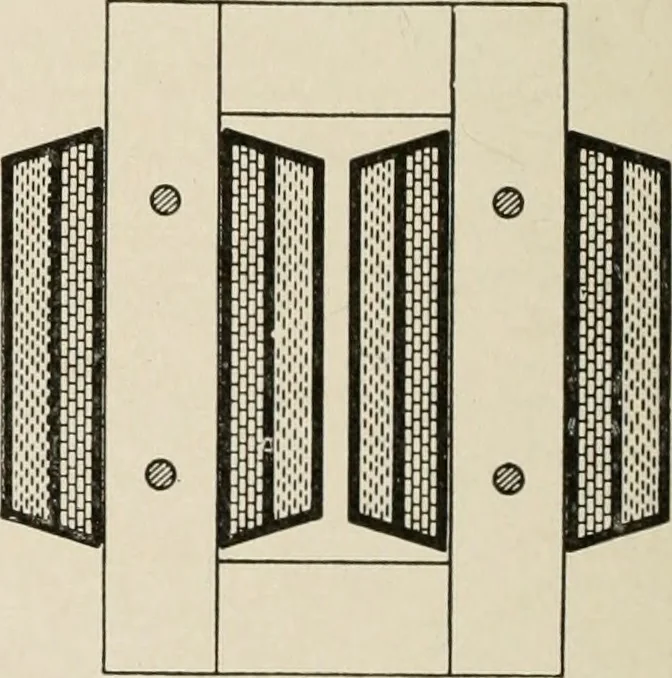

ings of wire upon them are calledyokes. These yokes serve to complete the magnetic circuit, andthey are made just long enough to giveroom for the coils, as shown in Fig. 241.Fig. 239 shows the core with its upperconnecting yoke removed to permit ofthe slipping of the coils into positionon the core;… … core. Fig. 241. Section Through Core-Type oi Tran.sformer place, and a pile of loose sheet-iron stampings which are used to form the upper connecting yoke. Fig. 241 is a sectional view of the completed core and coils; and Fig. 242 is a sectional view of the complete transformer enclosed 286…
