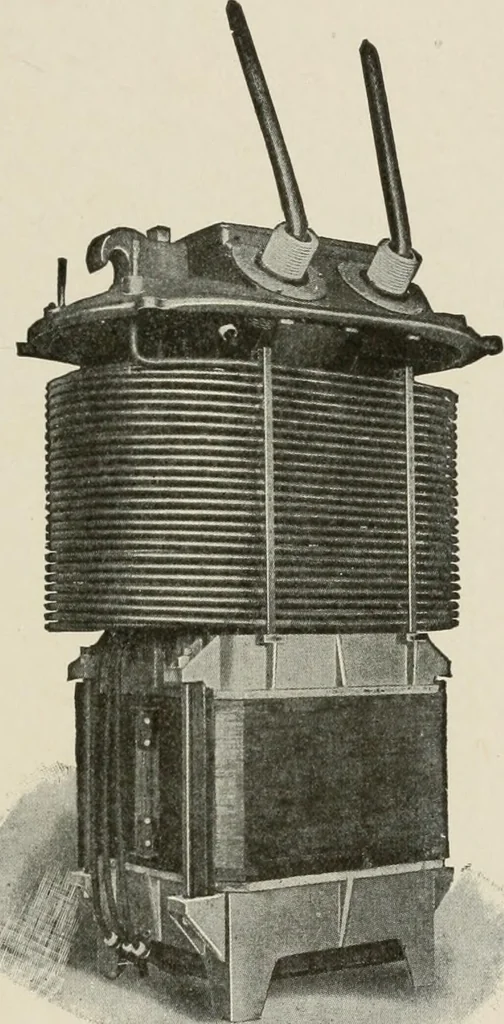

without drawing off any oil. Inspection of allparts is also easily and quickly made, (c) There being but a fewbolts to loosen, it is easy to remove the transformer from the tank. 302 ALTERNATING-CURRENT MACHINERY 289 or to lift tank and all by means of the lugs on the cover, (d) Withthis… … Fig. 270. General Electric Water-CooledTransformer Showing Coils in Position and electrical design, similar to the oil-cooled transformers, the onlydifference being in the tank. In the water-cooled type the tank isbuilt up of heavy boiler plate iron riveted to a cast-iron base. Alljoints on the…
