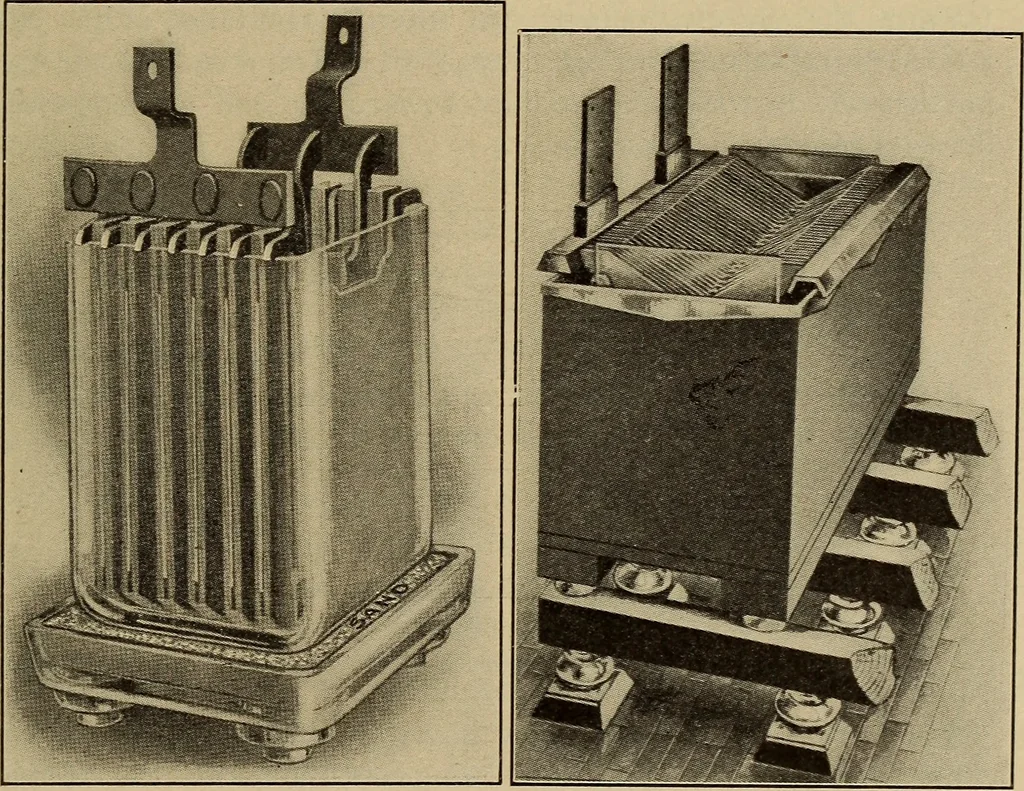

spraying when thecells are gassing freely, glass sheets are placed over the tanks. For automobile work, hard rubber jars are used. These areplaced in a wooden box and compound is poured around thejars and flooded over the top so as to hold them securely andalso to seal the battery and thereby… … Fig. 168.—Small cell in a glass jar Fig.supported on sand. 169. -Central station type oflead cell. 179. Voltage of a Lead Battery.—The terminal voltage of abattery = Eb + IR while the battery is charging= Eb — IR while the battery is dischargingwhere Eh is the internal generated voltage of the…
