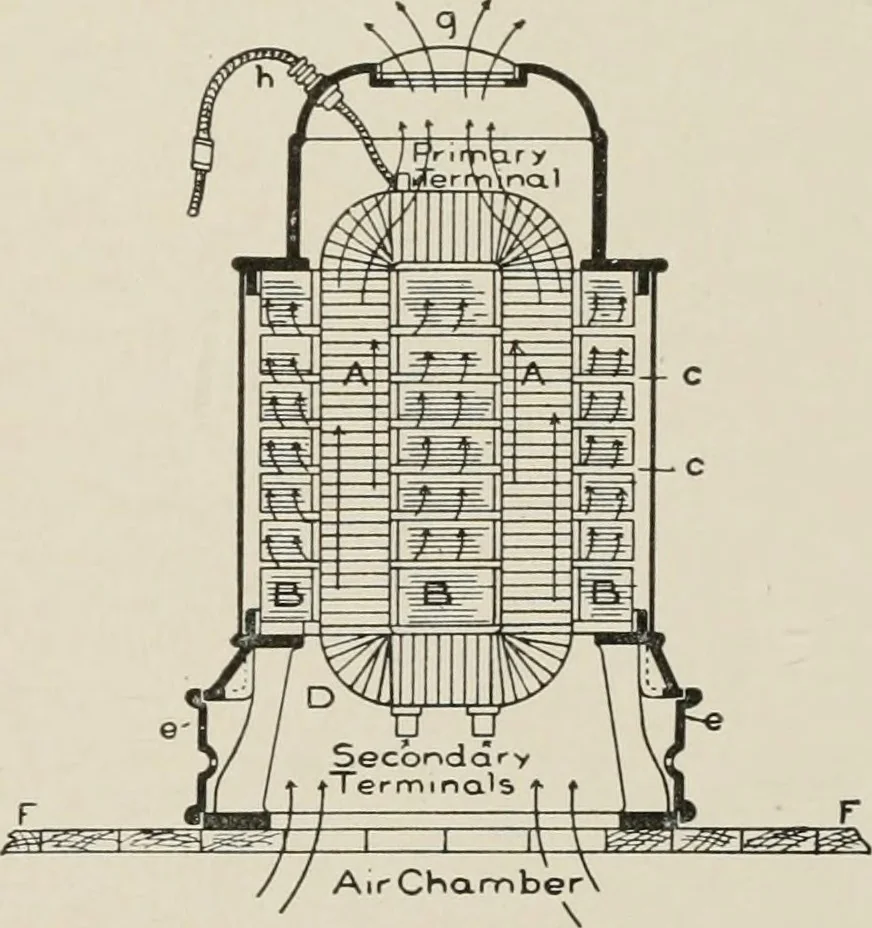

y the blower setbeing less than one per cent ofthe full-load output of thetransformer. The flow of airis controlled by dampers; andthe proper amount of air canbe determined from Its tem-perature as it issues from thetop; ordinarily this tempera-ture should not be more than20°C. above the… … Fig. 275. Section of Air-Blast TransformerShowing Circulating Currents 309 296 ALTERNATING-CURRENT MACHINERY case, penetrates through ducts in the core and coils, and passes outat the top of the case, as shown in Fig. 275. The process of building up the core of a shell-tjpe air-blasttransformer is…
