Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 364

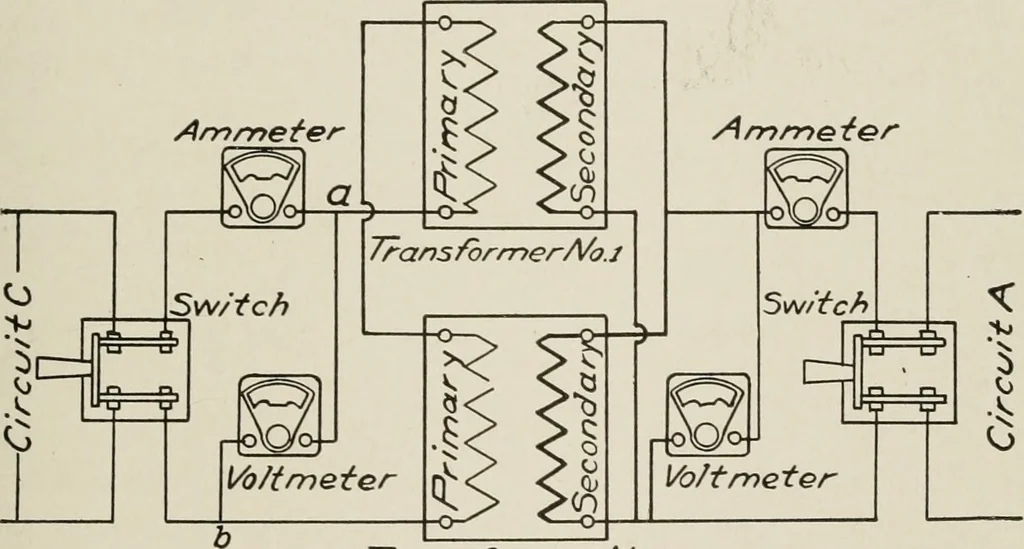

s to oppose each other. The resultant voltagebetween the points a and b will then be zero, notwithstanding the fact thatfull voltage exists between the terminals of each transformer secondary.Therefore, if the points a and b be joined together no current will flow. If.however, instead of being… … Transformer No.z. Fig. 286. Connections for Transformer Heat Test the primary coils. Since each transformer is in effect short-circuited by theother, it follows that approximately twice the impedance voltage* of onetransformer impressed at C will cause full-load current to flow through theprimaries…
Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
