Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 157

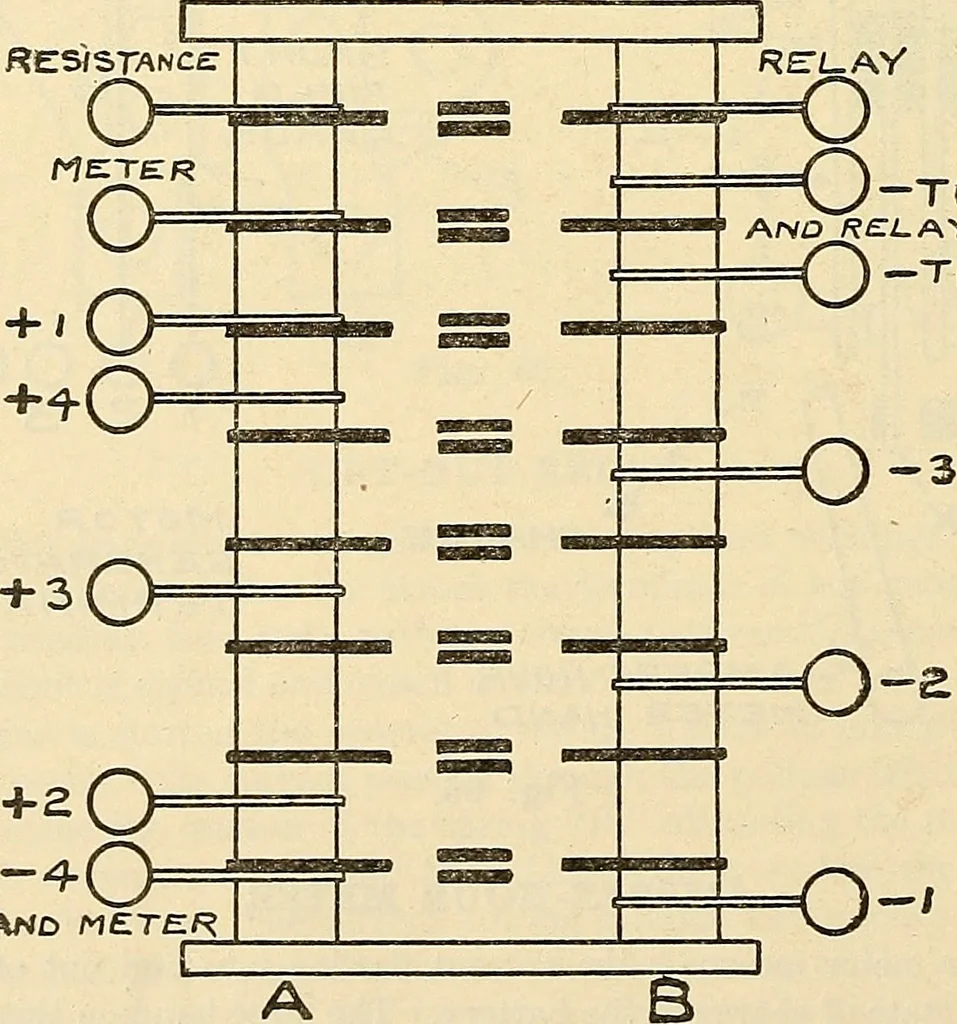

on contact spring K, which closes contacts D, causing the battery tocharge at its full rate. The contact points at D and G should be examined occasionally to see that theyare properly adjusted and making contact. Once every two weeks the large hand on this meter must be set back 20 points in… … AND METER Fig. 67. CONTROLLER SWITCH The controller switch is an eight-pole double throw switch. When the controller switch is in running position A it connects four 3-cell sections of DELCO SYSTEMS 155 the storage battery in parallel, giving six volts, and also making the proper connection…
