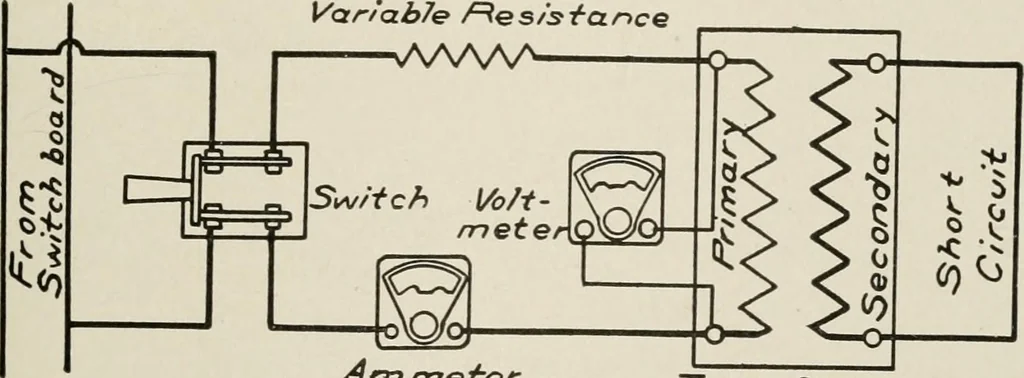

the primary. Impedance. One of the important constants of a transformeris its impedance ratio, that is, the ratio of the voltage consumed byits total internal impedance at full-load current to its rated full-load voltage. The impedance of a transformer is measured by short-circuiting one of its… … Amrrreter Trcins/orrr,^r Fig. 288. Diagram of Connections for Making Transformer Impedance Tesv the impedance is found as Z= -y- ohms. The value thus obtainedincludes the impedance of both primary and secondary windings. 325 312 ALTERNATING-CURRENT MACHINERY Impedance may be considered as constant…
