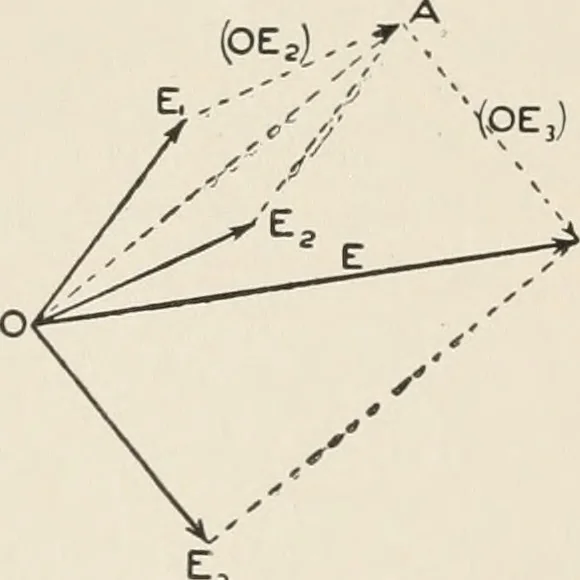

constructed on OE^ and OE^ as sides.This gives the vector sum of OE^ and OE^,Next construct a parallelogram on OA and0£, as sides; the diagonal OE of this par-allelogram is the vector sum of the threegiven Unes. This line OE is the closingside of the polygon formed by drawing OE^, then drawing OE^… … Fig. 30 Addition of E. M. F.sby Vector Polygon 32 ALTERNATING-CURRENT MACHINERY 23 are connected in series between mains as shown in Fig. 31. If theelectromotive forces of A and B are in phase, the electromotiveforce between the mains will be simply the numerical sum of theelectromotive forces of A…
