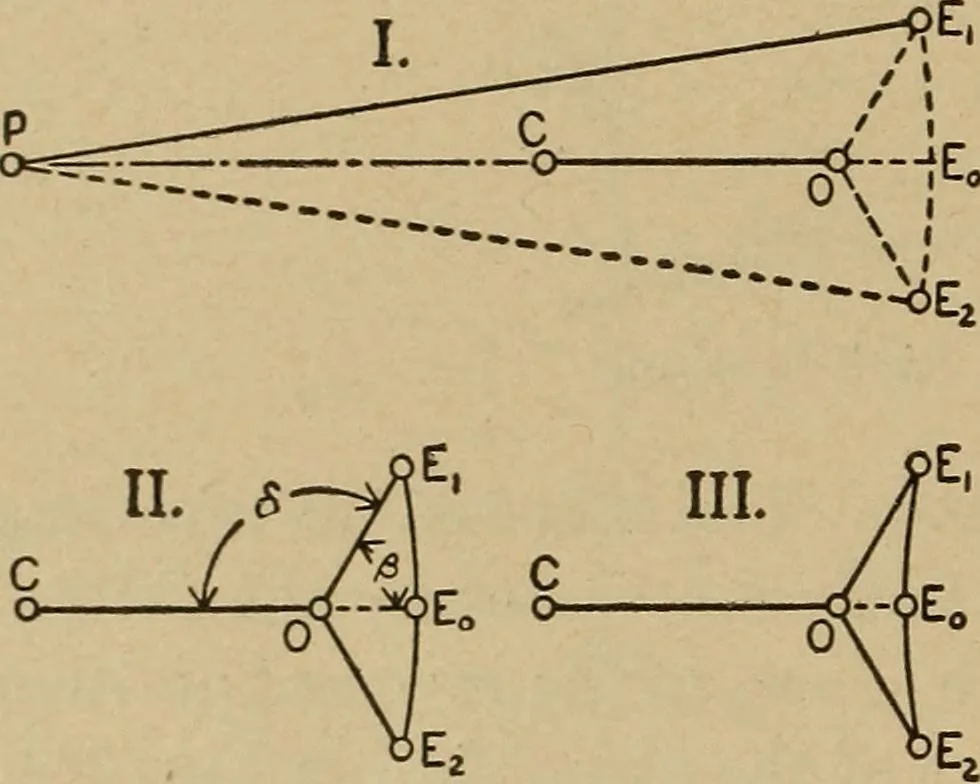

past Eo to E2; then the lower half of the locus of E will corre-spond with, and will produce, reversed running of the engine. The locus of the equivalent single eccentric, for the link motion isshown at II and III of Fig. 245 for the respective cases of open andcrossed rods. In strict accuracy… … Fig. 245. — The Eccentric Locus. To = rfcoSjS ± ysm where r is the actual eccentric radius, /3 is the supplement of 8 as onFig. 245 II, k is half the length L1L2 of the link, and I is the length ofthe eccentric rod. The plus sign is for open rods, giving the convexlocus in II, or increased lead…
