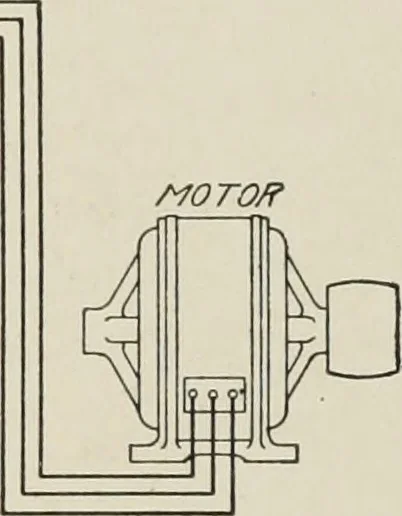

f r^sss GCnCffA TOf^ CABL€ BACK-F//^£/T BLOCKSW/TCfi cri/WFR F/NGfff BLOCK … Fig. 348. Electrical Connections for Three-Phase Starting Compensator 348 is a diagram of the electrical connections. The three coils of thethree-phase winding are connected in Y, the line to the three freeends of the coil, and the starting connections of the motor to thetaps. For motors from 5 to…
