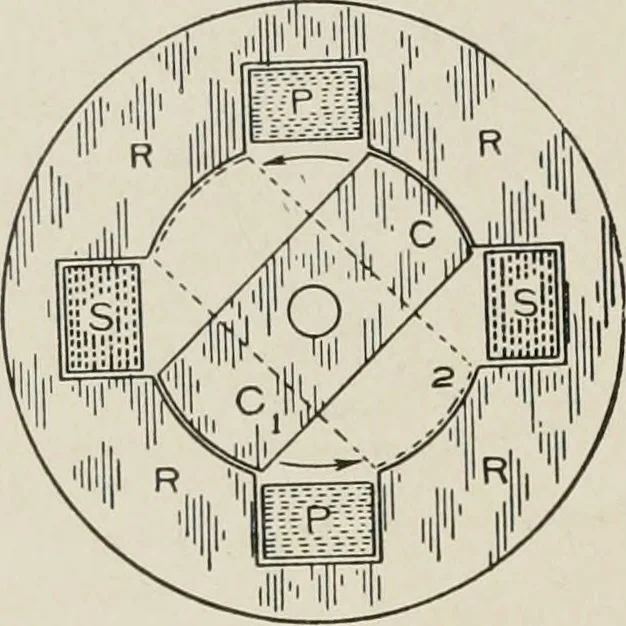

389. Diagram of Special Form of Dial Switchfor Stillwell Regulator 463 446 ALTERNATING-CURRENT MACHINERY … Fig. 390. Diagram of MagneticVoltage Regulator core is not magnetized, and the windings of C have no choking action.When, however, the two fingers A and B touch adjacent points of the dial switch, the turns of wire <S on the reg-ulator secondary tend to send a very largecurrent out on A, say,…
