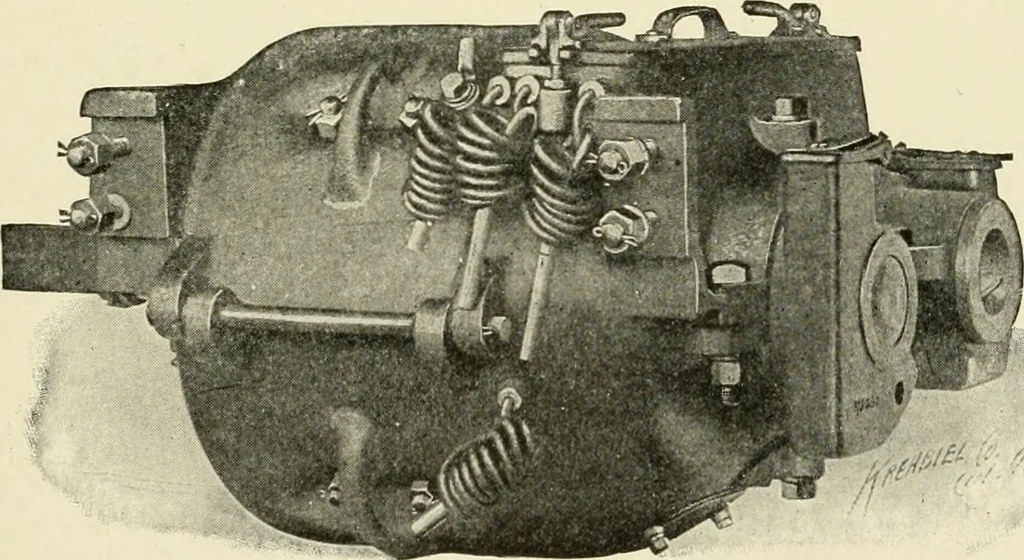

Fig. 30. Westinghouse Railway Motor, 35 H. P. the commutator and brush rigging may be inspected and brushesreplaced. In the lower part of the frame are hand-holes for exami-nation of clearance between armature and field poles and removal … Fig. 31. WRstinghou.se Railway Motor—Commutator End of dirt. The holes through which the armature and field wires arebrought through the case are bushed with insulating material. Field Pole-Cores and Coils. The four field pole-cores projectradially inward from the frame, each at an angle of 45…
