Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 353

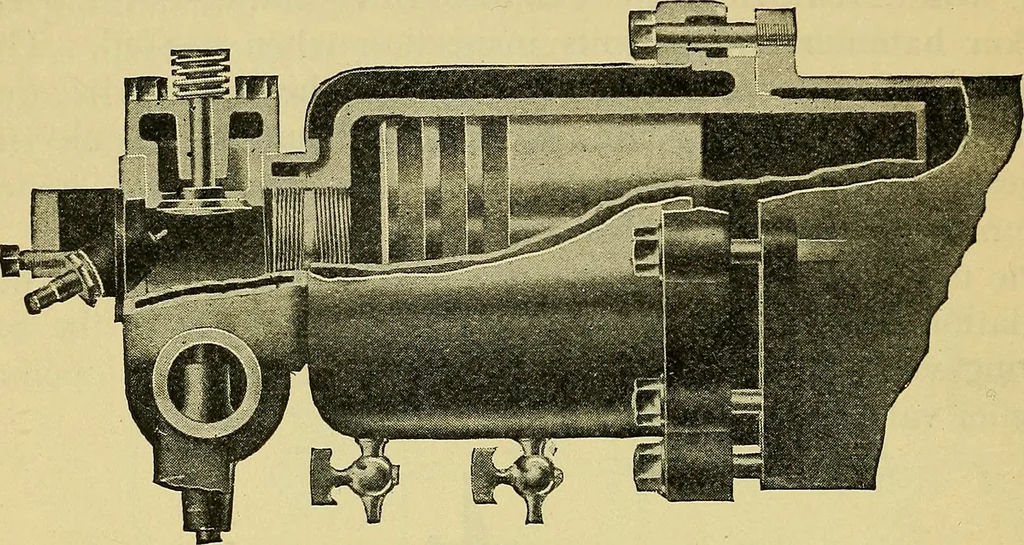

as 8*4- The cylinder is castseparate, the water-jacket being a copper sheath, shaped andflanged to be bolted over the wall, and the valve chambers ar-ranged to be connected by a right-and-left screw joint to the headof the compression space. Both inlet and exhaust valves are posi- 840 SHLP-PROPBUMD… … Fig. 253.—Part Section of the Cadillac Motor, showing position of valvesand spark plug- and the method of securing the copper jacket cover.
