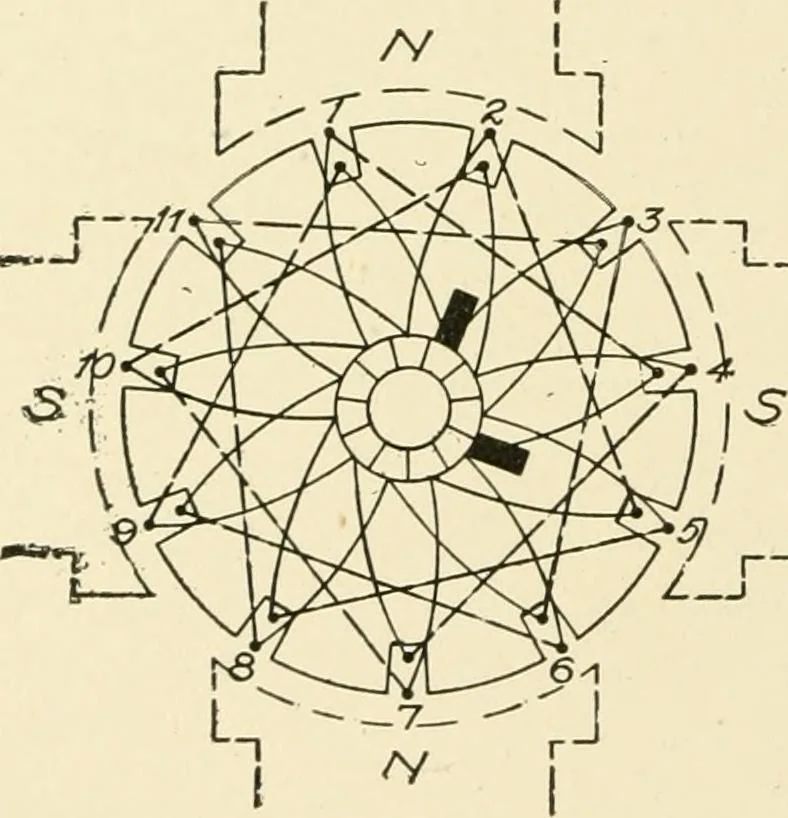

laid inthe bottom of a slot and theother side of each coil is placedin the top of the slot into whichit naturally fits. Bands madeof bronze wire are wound about the core to hold the coils inplace. In connecting the coils to the commutator the simplifieddiagram of Fig. 37 will be found useful. This… … Fig. 37. Diagram of Armature Winding 128 ELECTRIC RAILWAYS 33
