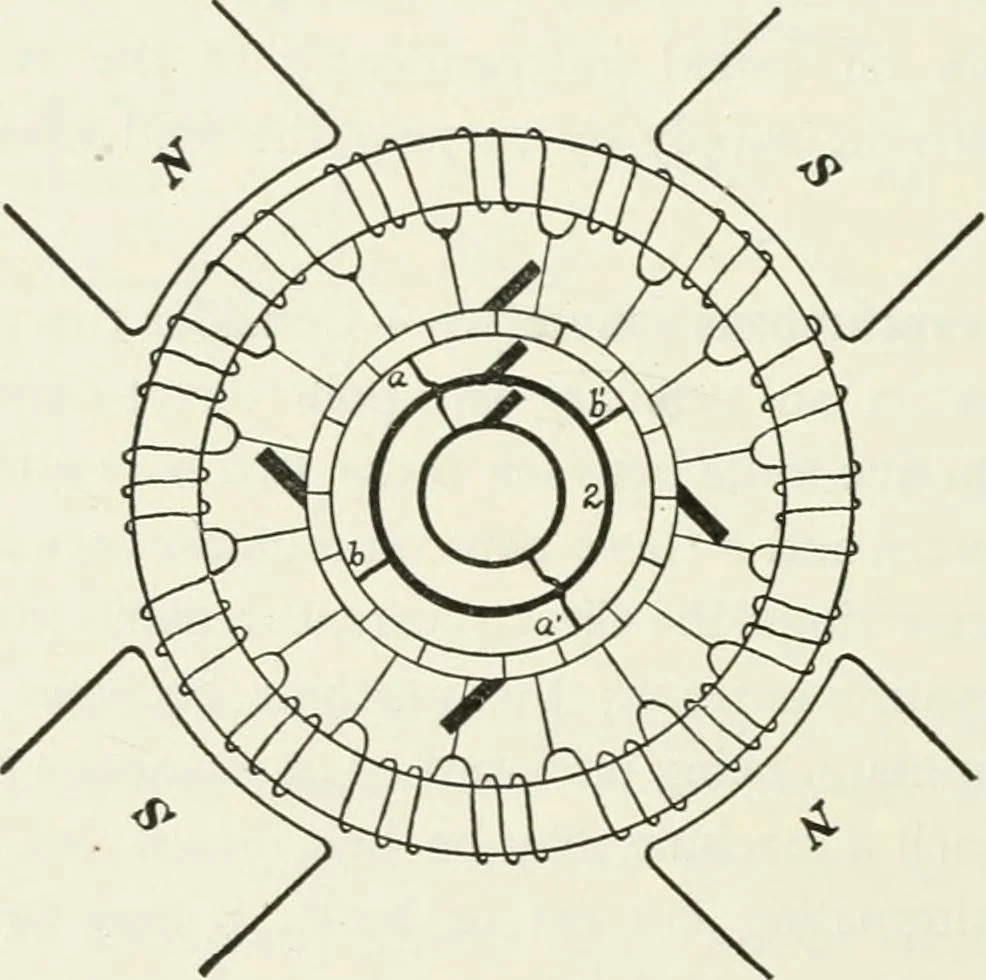

or single-phase converter. The three-ring or three-phaseconverter has three collector rings connected to three commutatorbars 120° apart (on a two-pole machine), the four-ring, or so-calledtwo-phase converter, has four collector rings connected to fourcommutator bars 90° apart (on a two-pole… … Fig. 210. of the armature lie midway under the north poles of the fieldmagnet. Let / be the distance between adjacent commutatorbars of this first set. Then ring No. 2 is connected to all commu-tator bars i/;/th of / ahead of the first set; ring No. 3 is con- * Also often called a rotary converter.…
