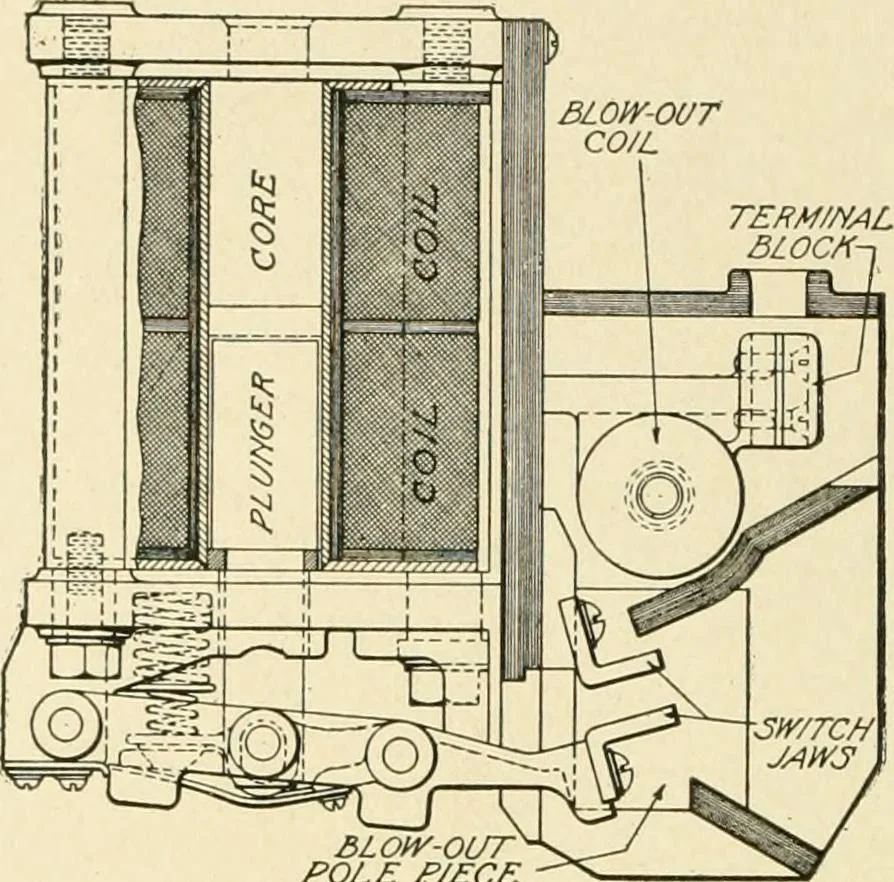

Fig. 59. Sprague-General ElectricContactor 153 58 ELECTRIC RAILWAYS Contactors. The circuit breakers in the form especially de-veloped for traction work are called contactors. Such a contactoris shown in Figs. 59 and GO. It consists of a coil of fine wire sur- … 3LOIV-0(JT^POLE P/ECE Fig. 60 Sprague-General Electric Contactor Diagram rounding a movable plunger and capable of exerting a powerful pullthereon. The lower end of the plunger is attached to a switch armon the end of which is a copper contact finger which is one end of the
