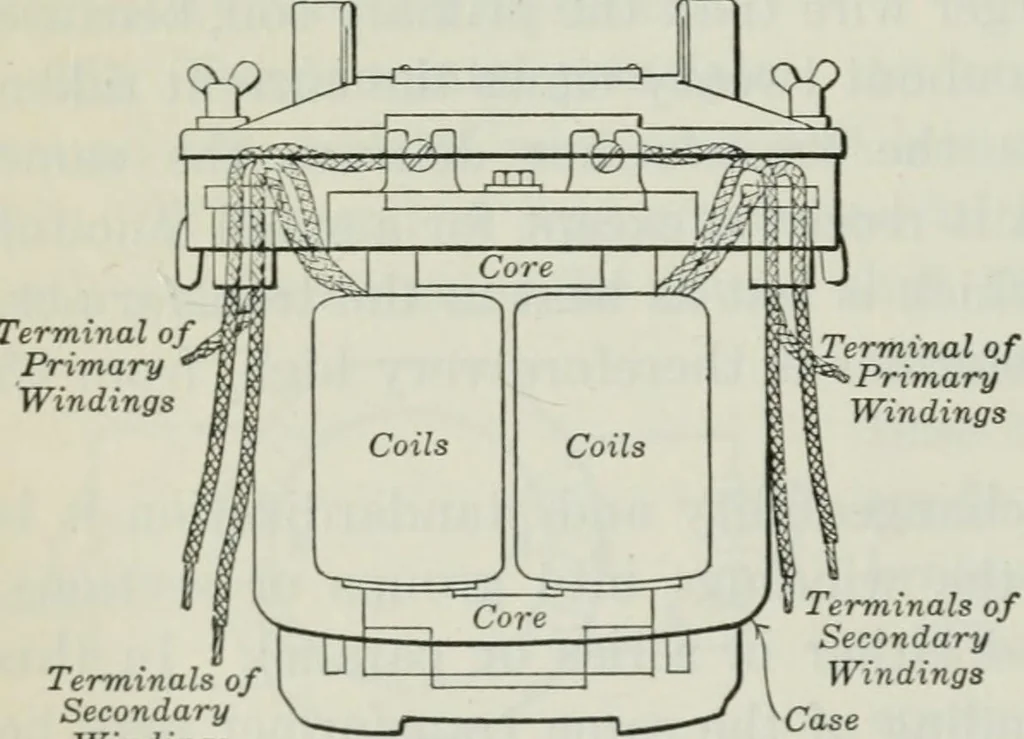

annealed silicon steel having a thick-ness of about 0.014inches. The core type re-sembles very closelythe Faraday ringshown in figure 251;however, the shapeof the core is rectan-gular and its cross sec-tion is nearly square.The two coils areplaced one over theother and each coil is divided into two… … TerminalsSecondaryWindings Fig. 253 Terminals ofSecondaryWindings•Case Small core-type transformer, assembled in case. TRANSFORMERS 375 up in thin sections (called pancake coils) and these sectionsof the high-tension and low-tension coils are sandwiched to-gether. Figure 254 shows a small…
