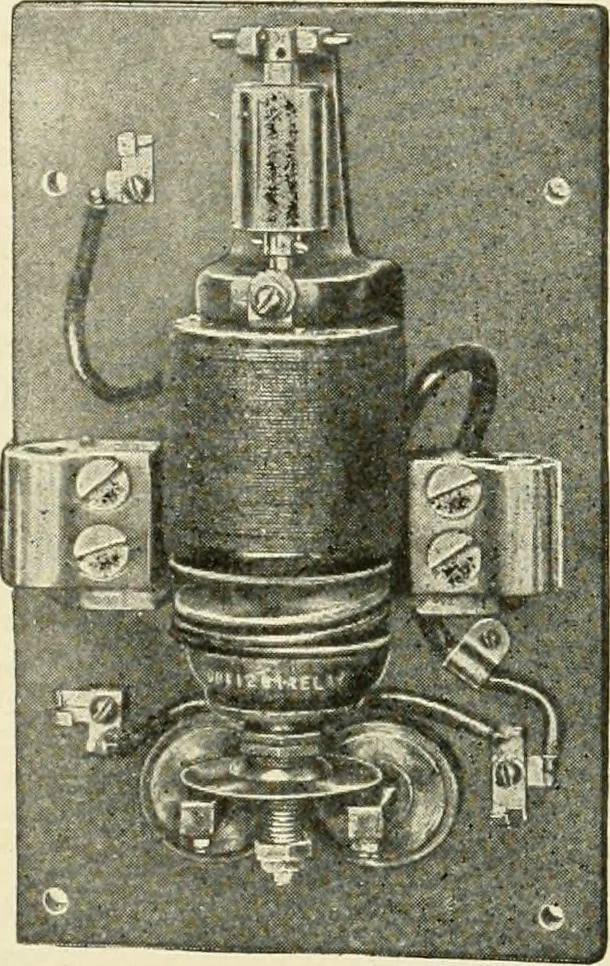

e is a small cylinder and apiston known as a dashpot which retards the upward motion ofthe plunger of the relay. A wiring diagram for a modern automatic control is given inthe appendix part IV, page 282. It is not very different from thepreceding system and will not be followed through in detail.… … Fig. 65. Sprague-General Elec-tric Current Limit Relay 161 66 ELECTRIC RAILWAYS from the motor circuit diagram in connection with the contactortable. The master controller is somewhat different from that pre-viously described, in that the reverse direction of the reverser issecured by a motion of…
