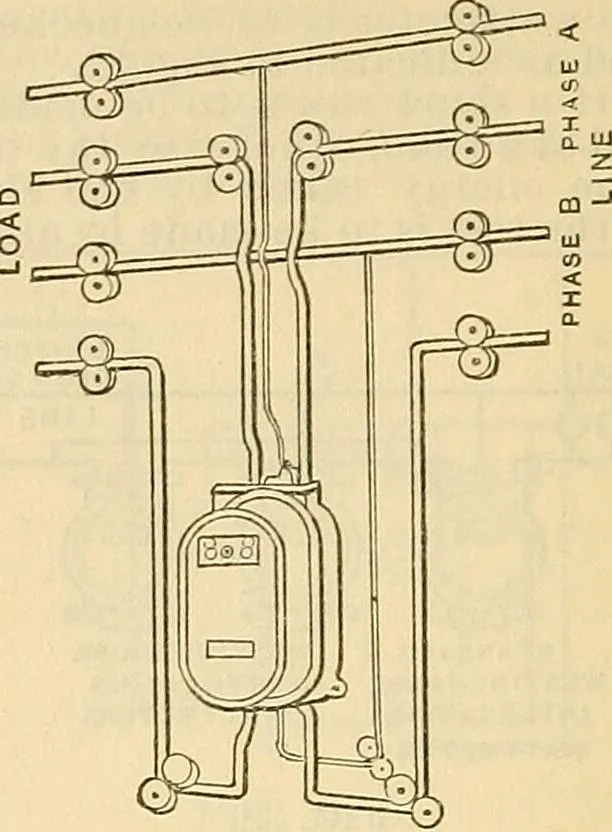

shoAVs the method of connecting three-wire, single-phase Westing-house Avattmeters to three-Avire circuits. All three-Avire, single-phase Westinghouse Avattmeters, for circuits ex-ceeding 400 amperes per side, are connected in this manner. Fig. 35 shows the method of connecting polyphase… … The following illustration shows the method of connecting polyphaseWestinghouse wattmeters to three-phase circuits. All polyphase Westinghouse wattmeters for three-wire, three-phasecircuits of 400 volts or less, and of 80 amperes or less, are connected in thismanner.
