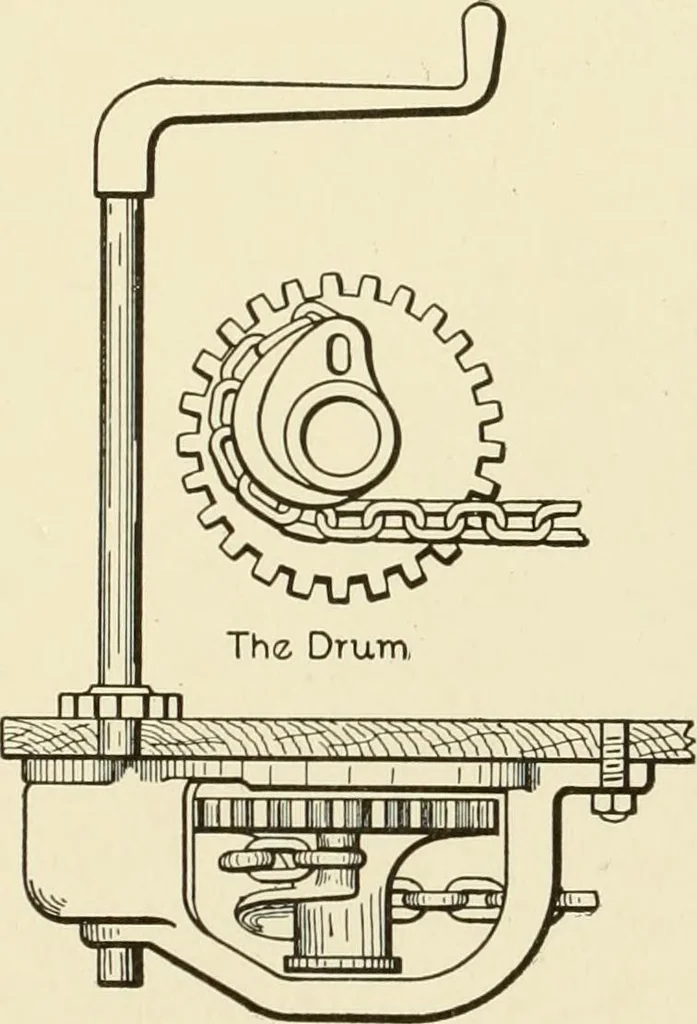

e extreme end of thecar in a convenient position forright-hand operation by the motor-man. It is provided with a brassratchet handle at the top. Justabove the platform floor, the staffcarries a ratchet wheel in the teethof which a pawl, hinged on the floor, can be engaged by motion ofthe motormans… … Fig. 82. Peacock Brake 179 84 ELECTRIC RAILWAYS lower end of the staff carries a pinion which meshes with a largergear wheel. The latter rotates a spiral drum, the radius of whichincreases upward from the bottom. The chain is attached at thetop where the radius of the drum is greatest. In operation…
