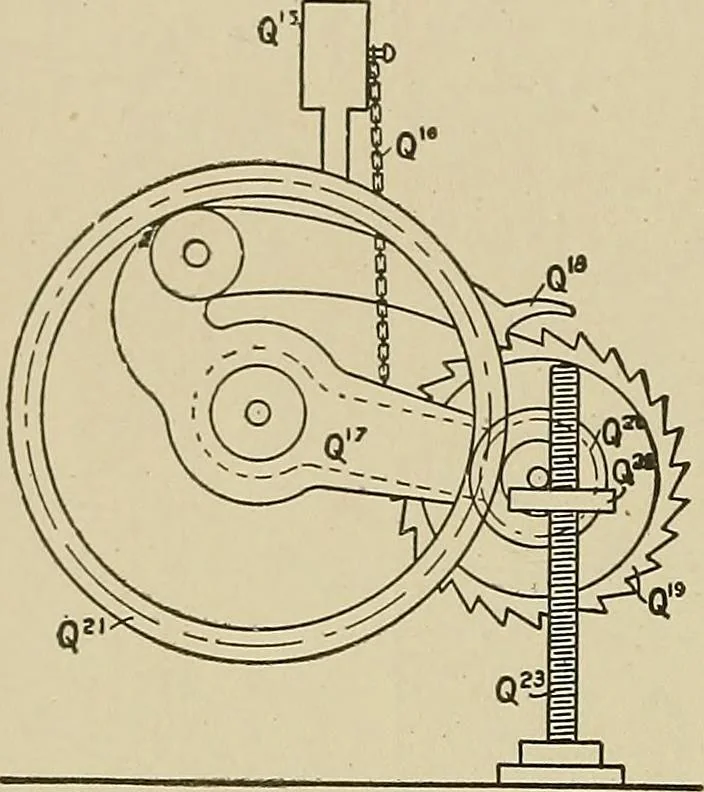

es.When the roll Q forces down the lever Q^^ it lifts the ratchet Q^^ andthe gear Q^^, causing the gear Q^^ to turn as the pawl locks with theratchet, when it is moved in this direction. As soon as roll Q^*leaves the lever, the ratchet and gear drop to their former position,leaving gear Q^^ at the… … position of the plate Q^^ which stops the ratchet and gear when theydrop. The higher the plate, the less distance the large gear will bemoved at each draw of the carriage, consequently the slower the railwill drop and the larger, bobbin will be formed. The position of Q also controls the fall of…
