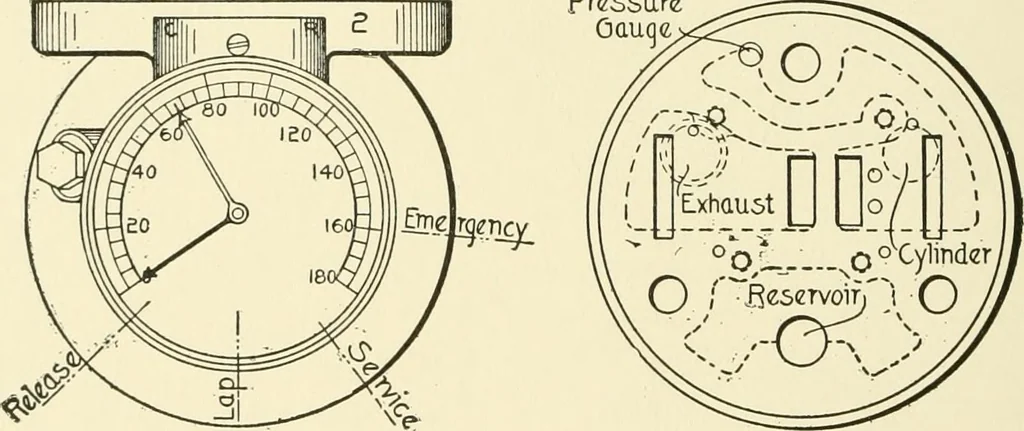

ates theslide valve 9. The spring plate 10 does not act as a stop for the slidevalve 9, but is used only to assist in getting the valve in the properposition when assembling the parts. The slide valve 9 moves be-tween suitable guides 11 and 12. The chamber A is always incommunication with the… … Fig. 95. Top View and Section of Valve Showing Pressure Gauge pipe B, the port C, the cavity D, the port E, and thence to the ex-haust pipe. When the valve is in emergency position, the right-hand edge of the slide valve 9 registers with the left-hand edge ofthe port C. Air then passes from the…
