Wiring diagrams of electrical apparatus and installations (1913)
McGraw-Hill · New York, McGraw-Hill Book Company · leaf 14

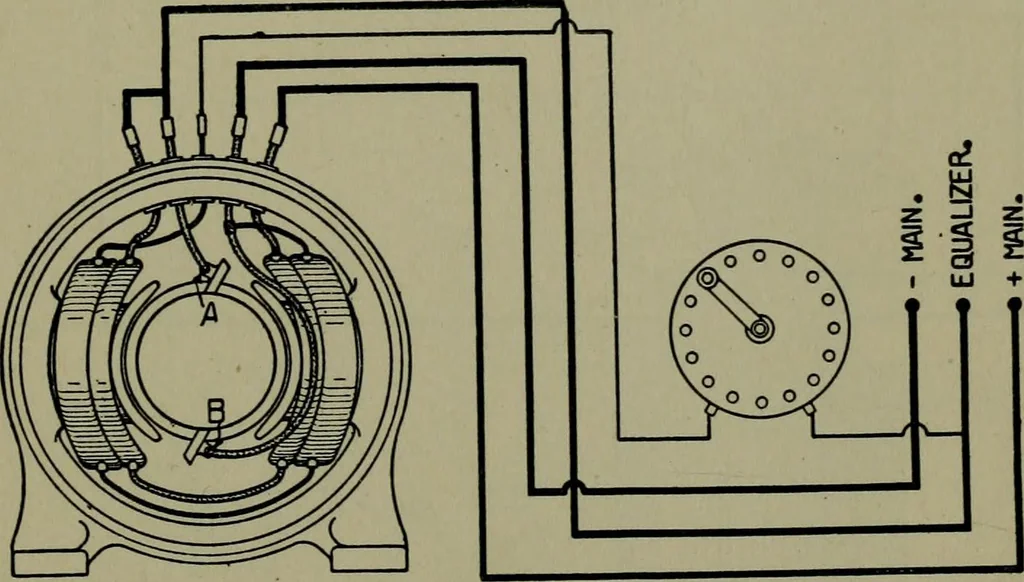

Fig. 4.—Compound generator(long shunt). … Fig. 5.—Two-pole, compound-wound generator with equalizer for connecting in parallel with similar generators.3 WIRING DIAGRAMS OF ELECTRICAL APPARATUS
Electric wiring
