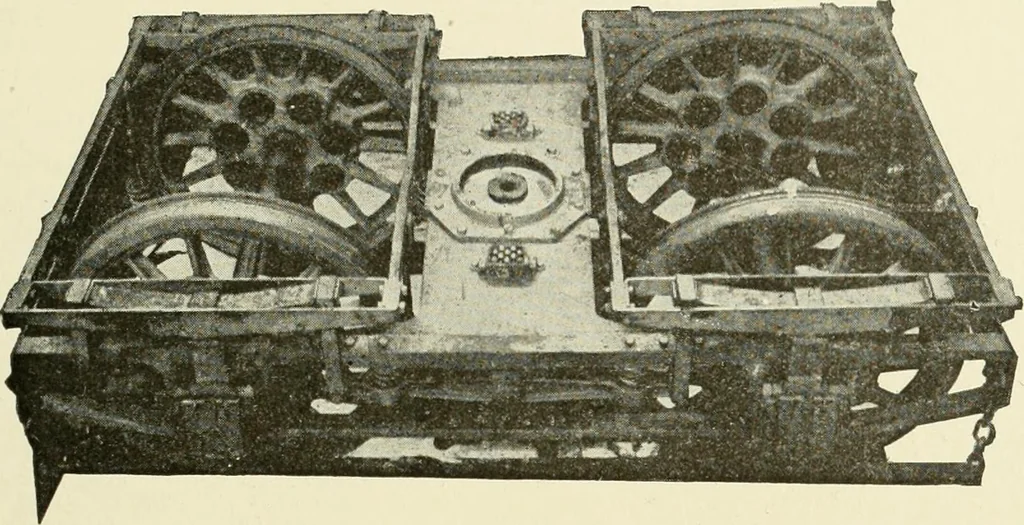

On this quillare the motor bearings which preserve the correct relation of arma-ture and field. On each end of the quill is a plate, see Fig. 258,from which project seven round pins. These pins fit very looselyin corresponding sockets on the inside of each wheel hub, which ismade very large for the… … Fig. 255. View of Truck without Motors of the armature is transmitted to the driving wheels through theseeccentric springs. The control of this equipment when operating on alternatingcurrent is not by the series-parallel method which is used withdirect-current, but by variation in the applied…
