Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 278

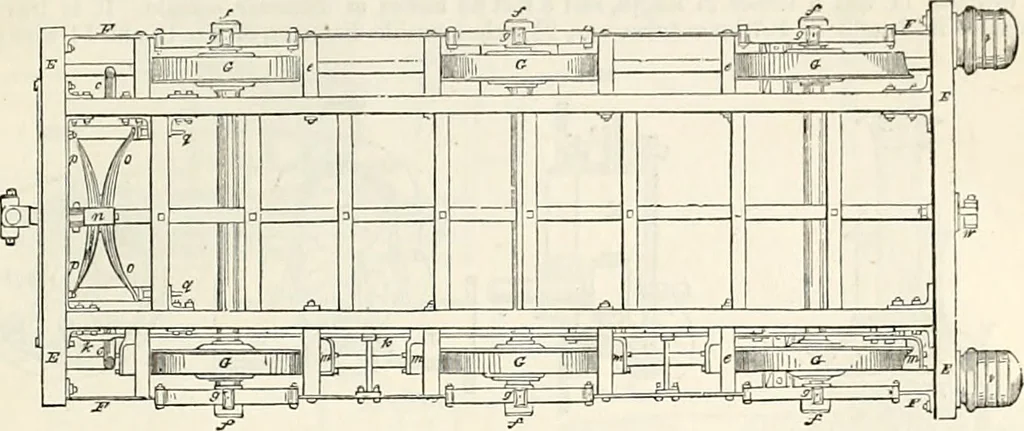

, a plan of the same. Fig. 2627, a longitudinal section of the feed pump, with the plunger, valves, <tc Fig. 262S, an end view of the same. LOCOMOTIVE EN(HNE. 273 Fig. 2629, a plan of the double safety-valve, with the seat; Fig. 2630, a longitudinal section o(the same. Fig. 2631. an edge view of… … Fig. 2632, a transverse section of the diiving-wheel axle-bos, and of part of the outer spring ?ig2633, a longitudinal section of the same. Fig. 2634, a section of the suspending link for adjusting the weight of the engine on the springs • Fig2635, a side elevation of the same. 2609. 2610. 2611.
