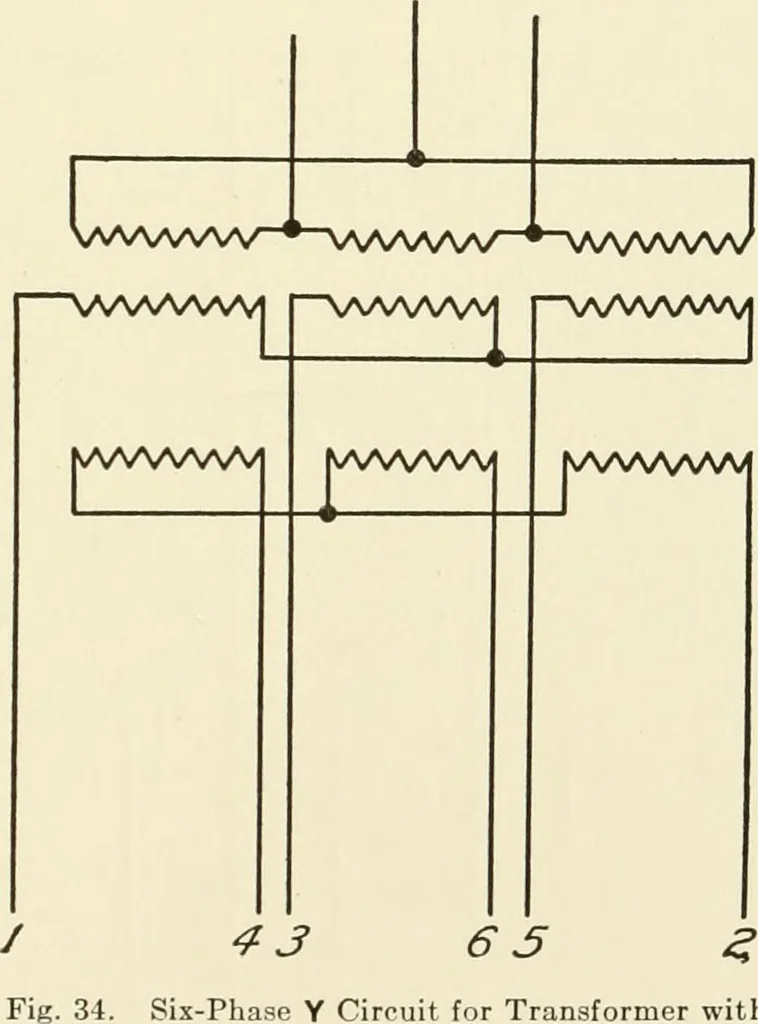

are in A, orvice versa. The voltage re-lation may best be determined from vector diagrams, as shown inFig. 31, which give the voltage relation of step-down transformers witha ratio of 10:1, when the voltage across the primary lines is 1,000. Changes from two to three phases, or from three to two… … Six-Phase Y Circuit for Transformer withTwo Secondaries 63 54 POWER TRANSMISSION spending vector diagram showing the relations when the changeis from two phases to three phases with a 10:1 transformation ofvoltage. The main transformer is fitted with a tap at the middlepoint of the secondar}^…
