Electricians' operating and testing manual; a hand book for men in charge of electrical apparatus, repair men, trouble men, lamp trimmers, and electricians generally (1916)
Horstmann, Henry Charles, Tousley, Victor Hugo, 1875- joint author · Chicago, F.J. Drake & co · leaf 266

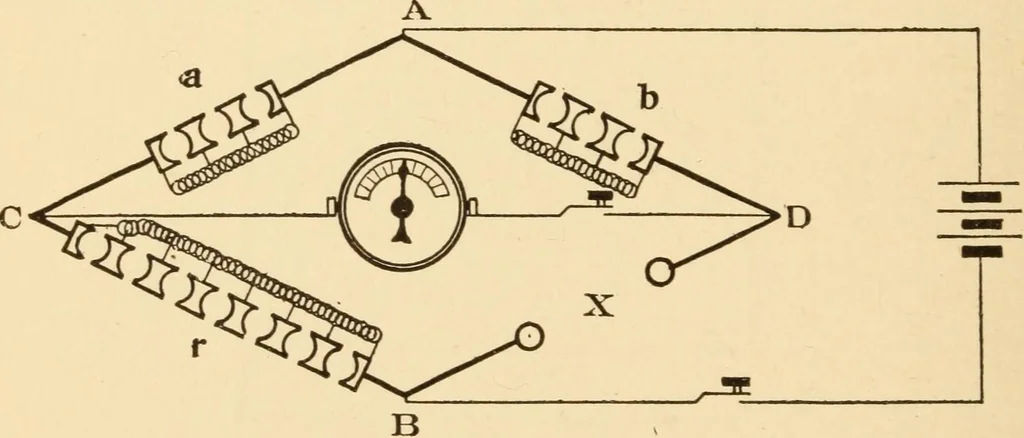

C and D. Both batteryand galvanometer circuits are provided with keys andare normally open. In the type of bridge shown, the resistances are con-nected between brass strips, brass plugs inserted in theholes between the strips short circuiting those resist-ances which are not used. In each of the… … Figure 163 in each of the arms a and b. If it is known that theresistance of the apparatus being measured is not lessthan the smallest resistance in r or greater than thegreatest resistance in r, make the unplugged holes ina and b of equal resistance, say 10 and 10, and removeone of the plugs in…
Electrical engineering · Electric testing
