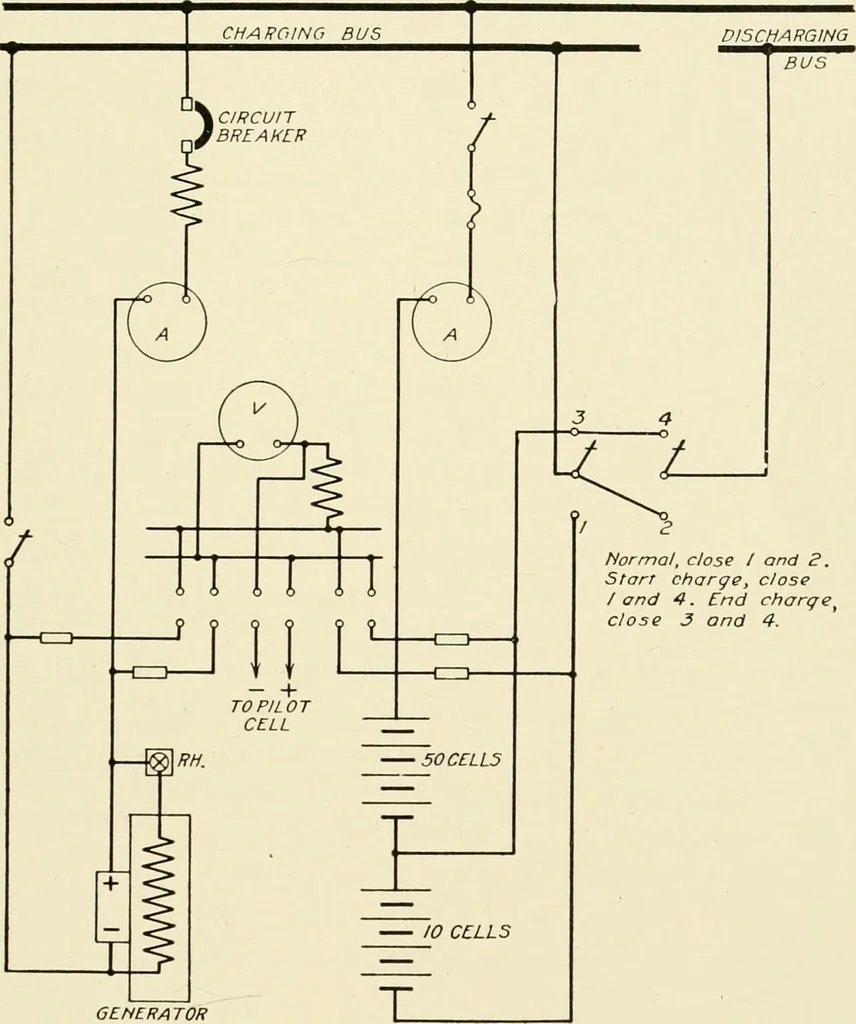

ranged so that it can be connected acrossthe generator, across the end cells, or across a single pilot cell. Theconnections are shown in Fig. 27. 132 SWITCHBOARDS 35 It will be seen from the connections that normally the generatoris connected across, the whole battery, and the battery is in… … normal, close I and 2.Starr charge, close/ arjd 4. End chargeclose 3 and 4. GEIiERATORFig. 27. Battery Switchboard Wiring Diagram for Operating Switches and Other Devices the whole battery. Thus raising the generator voltage for thecharging operation still leaves only about normal voltage on…
