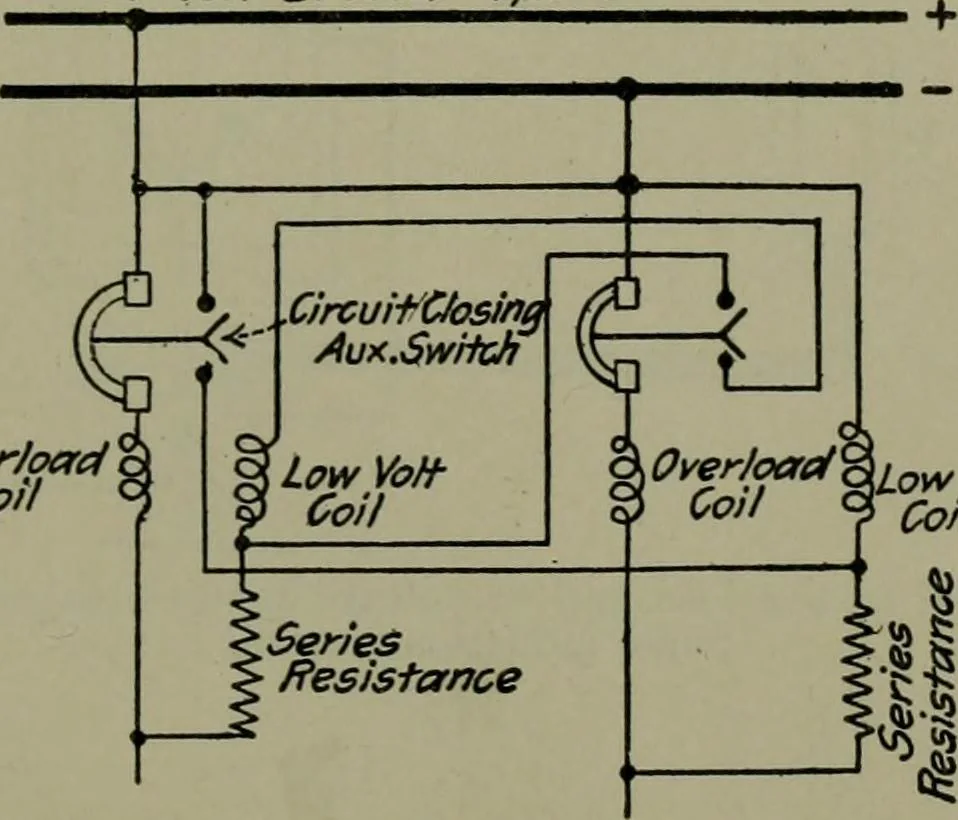

Shunt TripCoil ^ Aurf., Swifch chses one Circuif erne/Opens anofher when Circuit Brecr/rer Opens Fig. 368.—Connections of system for interlocking two circuit-breakers by means of shunt trips and auxiliary switches. Aux. Switch Closes when Circuit Breaker Opens … OverloadColl Overload^^^yfyff(^ol ^ Coil Fig. 369.—Connections of system for interlocking two circuit-breakers by means of low-voltage trips and auxiliary switches. 212 WIRING DIAGRAMS OF ELECTRICAL APPARATUS
