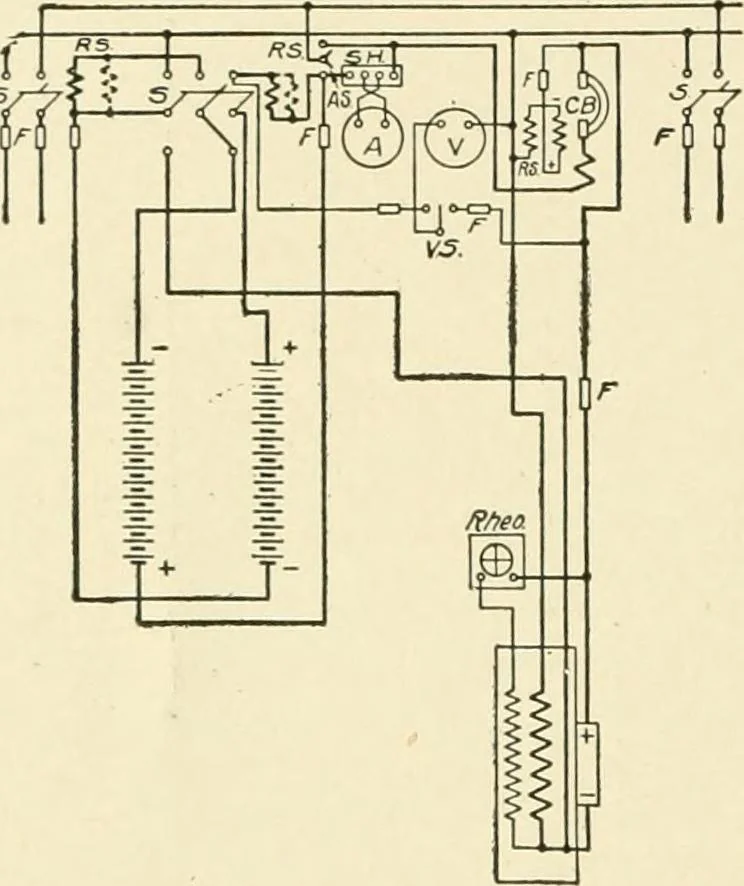

e equipment reduced as far as is consistent withthe protection necessary. The equipment consists of: 1 Single-pole reverse current and low voltage circuit breaker 1 Ammeter 1 Voltmeter 1 Voltmeter switch 1 Ammeter switch 1 Triple-pole double-throw lever switch 2 Double-pole fused circuit switches1… … Fig. 28. Wiring Diagram for Combined Gen-erator, Battery, and Feeder Panelfor Isolated Plant 134 SWITCHBOARDS 37 allows the generator to be used on the circuits during charging sothat continuous service may be given. Referring to Fig. 28, it will be seen that, when the triple-poleswitch is up, the…
