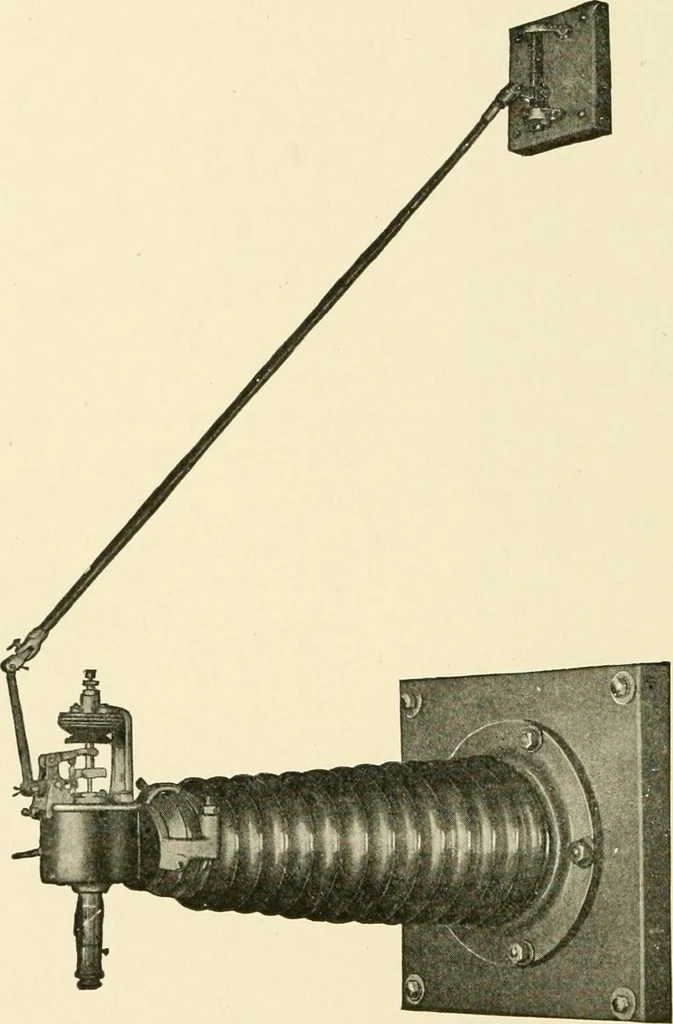

Fig. 66. Time Limit Overload Relays with Covers RemovedCourtesy of General Electric Company 199 102 SWITCHBOARDS relay is used to protect transformers against trouble in themselves.There are two opposing current coils connected to current transform-ers on both the low and high tension side of the… … Fig. 07. High Potential Series Relay, Mounted on Post InsulatorsCourtesy of General Electric Company ment of the plunger under normal conditions. If a short fircuitshould occur in the transformer and power should be fed from bothhigh and low tension sides, then the two coils would act together,and…
