Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 148

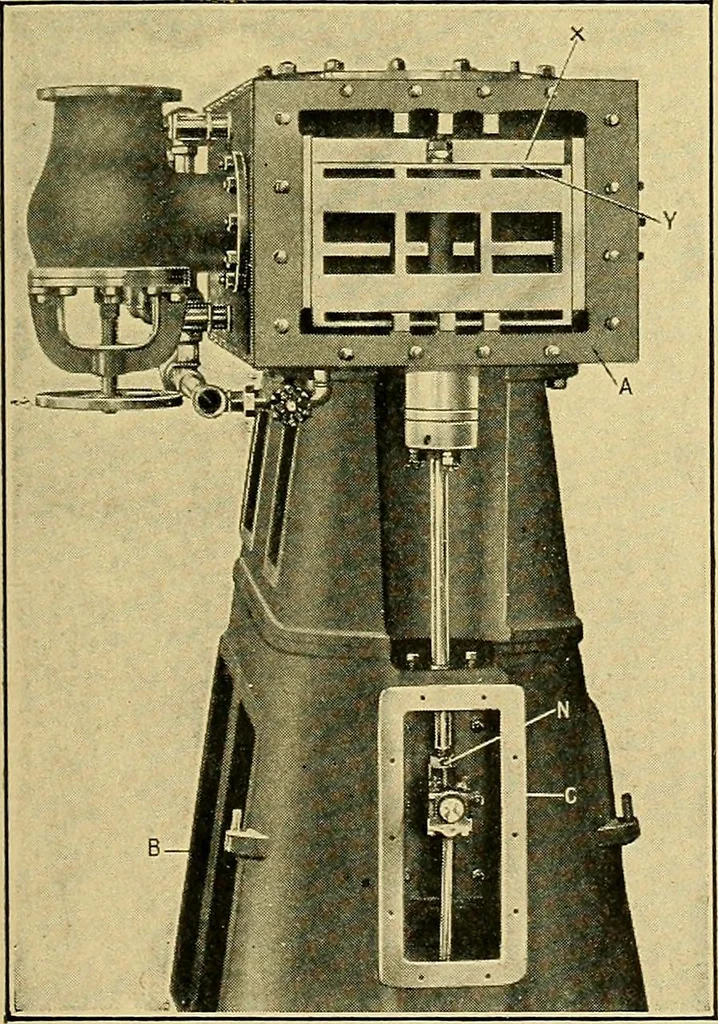

nuts at N. Boththese nuts are shown at the right-hand side of the large section ofthe engine. Fig. 139. The low-pressure crank pin should now beput on bottom center. The lead atthe bottom should be ^ in., or, asshown in Fig. 144, the distance{M N) between the edge of theport and that of the valve… … 138 VALVE SETTING membering that the bottom should have a little more lead than the top. The low-jaressure side is now adjusted. Before setting the high-pressure valve the governor must be considered. The general appearance of this form of inertia governor is shown in Figs. 145 and 146^ the former…
Steam-engines
