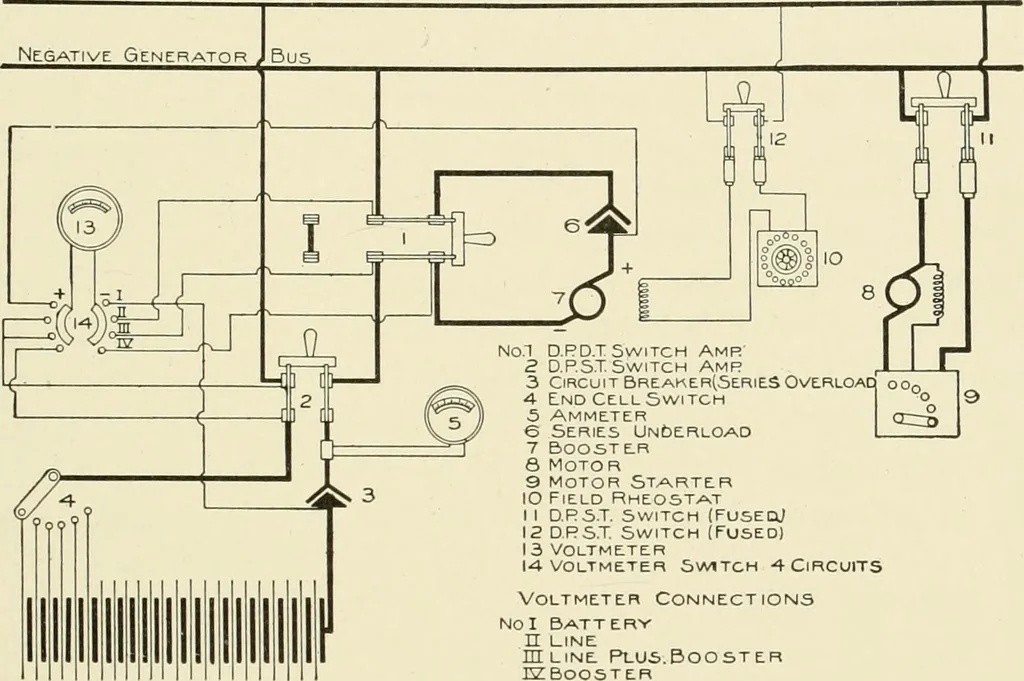

voltage applied to the battery so that the charg- 268 STORAGE BATTERIES 61 ing current will flow into the latter. As a rule, the battery used inconjunction with a shunt booster is made large enough to carry theentire load during the light-load period. As the battery dischargesand its voltage drops,… … 1-4 voltmeter switch 4 circuits Voltmeter ConnectionsNo I Battery n LINE niLiNE Plus.Booster EZ Booster Fig. 30. Shunt Booster Connections. the connections of this system. The booster (7) is direct-connectedto and driven by a shunt-covered motor (8), which takes current fromthe main bus-bars. The…
