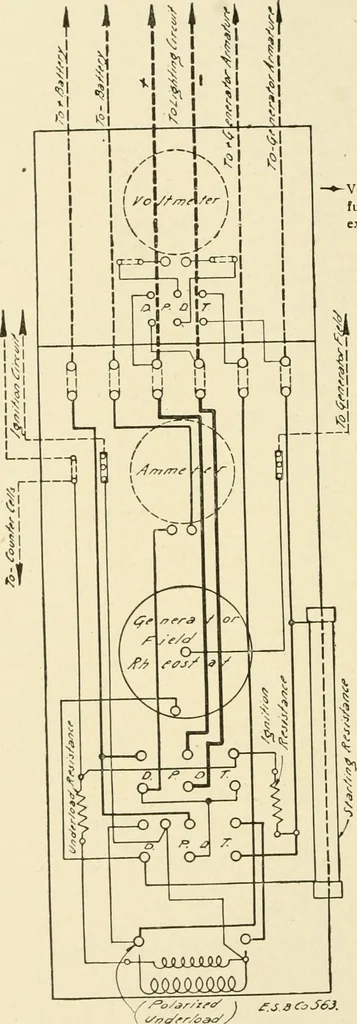

battery mounted on a bench, with a few countercells provided for the better regulation of the voltage. Fig. 5(3illustrates the standard connections between dynamo and switch-board for clockwise and anticlockwise rotation. Fig. 57 gives thediagram of a complete installation, the connections for the… … Voltmeter Panelfurnished as anextra, if ordered ^.^ 3CjS6J. Fig. 5S. Back of Switchboard Shown in Fig. 57Courtesy of Electric Storage Battery Company iS92 STORAGE BATTERIES 85 switch and fuses. Fig. 59 shows the switchboard arrangement.The only combinations possible with it are: to charge the…
