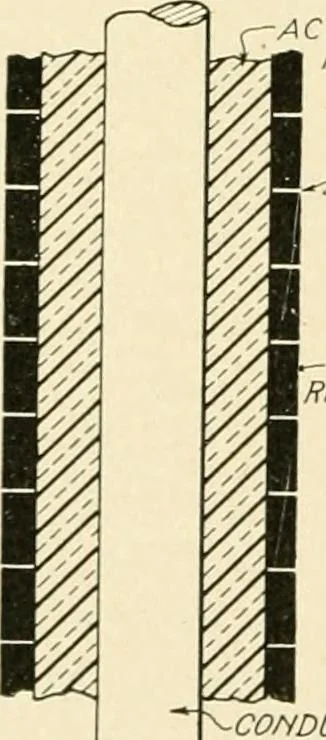

lead—the active material. This in turn isenclosed in a hard rubber tube providedwith a large number of horizontal slitswhich allow the electrolyte, or solution, toreach the active material. Fig. G4, whichshows a vertical section of a single pencil,makes this construction clear. Each tubeis provided… … ACT/l/£ MATERIAL r^ SLITS HARDRUBBER TUBE 1^— coNDUcTina CORE Fig. 64. Section of ExidePositive Tube 296 STORAGE BATTERIES elasticity, thus allowing for changes in volume of the active material.Fig. 66 shows a complete positive plate. The negative plate is thestandard Exide type. The ad-vantages…
