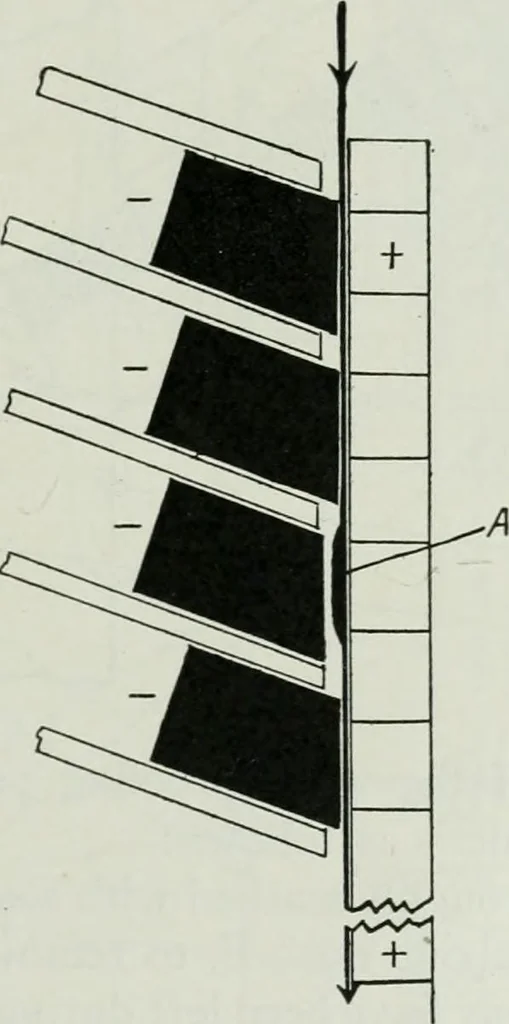

gram (one unit) in Fig. 6. In this unitthe electrodes are vertical, the anode consisting of an aluminiumplate (7, Fig. 6) one inch thick by eighteen inches wide and eithersixty or seventy-two inches long, and the cathode of eight graphitebars (8, Fig. 6) one and one-half inches thick by two inches… … When a seam (A, Fig. 4) passes between the electrodes, eachgraphite bar in turn moves backward and upward and, when theseam has passed, immediately falls back to its original position.Recently a spring device (10, Fig. 6) has been installed on thevertical graphite electrodes for the purpose of…
