Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 76

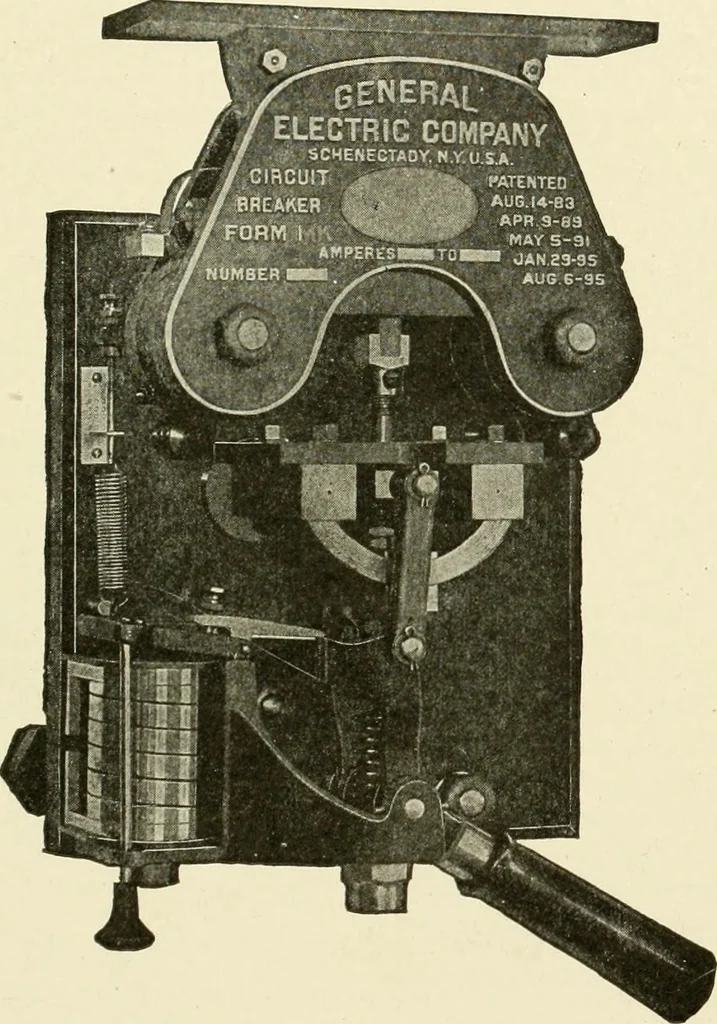

te meter for each generator. 62 POWER STATIONS 53 Small rheostats are mounted on the back of the panel, butlarge ones are chain-operated and preferably located below the floor,the controlling hand wheel being mounted on the panel. The circuit breaker may be of the carbon break or the… … Fig. 23. Magnetic Blow-Out Circuit Breaker of the panel or enclosed fuses on either the front or back of thepanel. A panel for a direct-current generator or a synchronous converterfor a 3-wire system should contain: 2 Ammeters. 2 Circuit breakers. Fuses used on small generators. 63 54 POWER…
