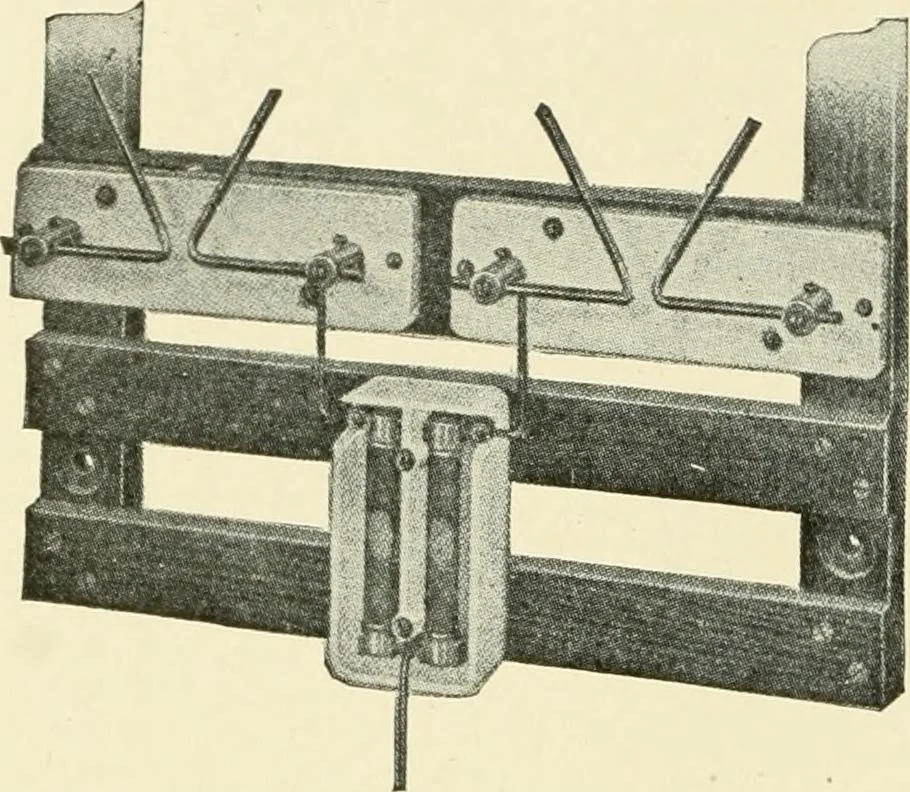

75 66 POWER STATIONS … Fig. 36. Horn Lightning Arrester rises and lengthens until it can no longer be maintained by the gen-erator or generators in service. The horn arrester as applied to serieslighting circuits is shown in Fig. 36. A series resistance, shown inthe lower part of the figure, is used with this particular…
