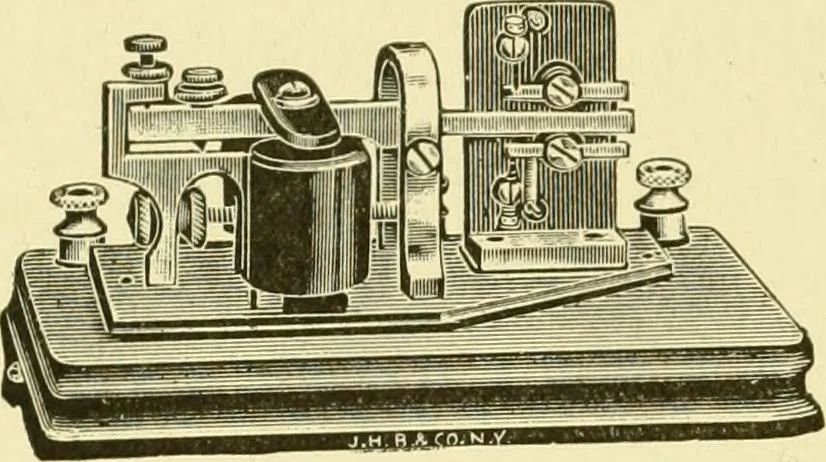

therefore operatesthe relay. It is of course neces-sary that incoming signals be notinterrupted by the operation ofthe home key, therefore a doublecontact key is necessary to groundthe circuit directly when the bat-tery is not in the circuit. Thisis the same as the key used in theopen circuit… … Fig. 24. Pole Changing Transmitter (B & O Pattern) Courtesy of J. H. Bunnell & Company
