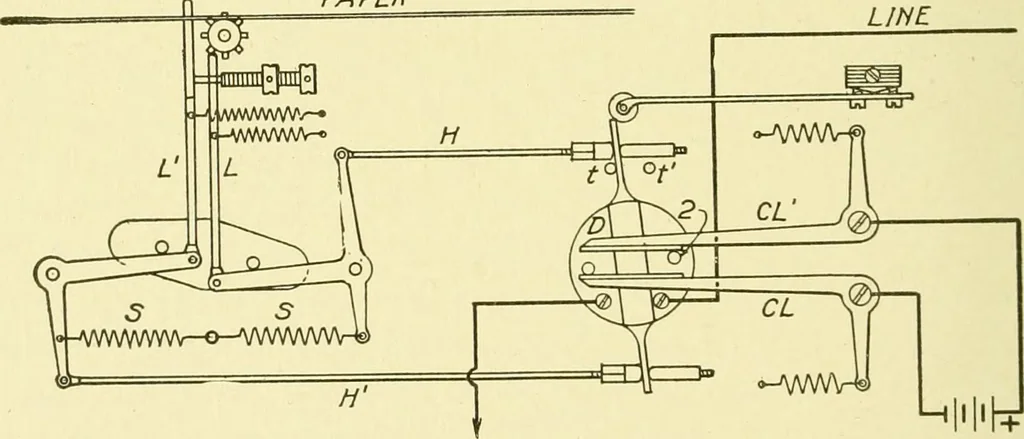

PAPER LINE … Fig. 41. Diagram Showing Construcliun aiul Operation of Wheatstono Transmitter sponds with the successive mo\enients of the rocking beam, thenregular short alternations of current will be sent to line as dot signals.When the holes are spaced as for dash signals, then the rod L on risingmeets with…
