Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 342

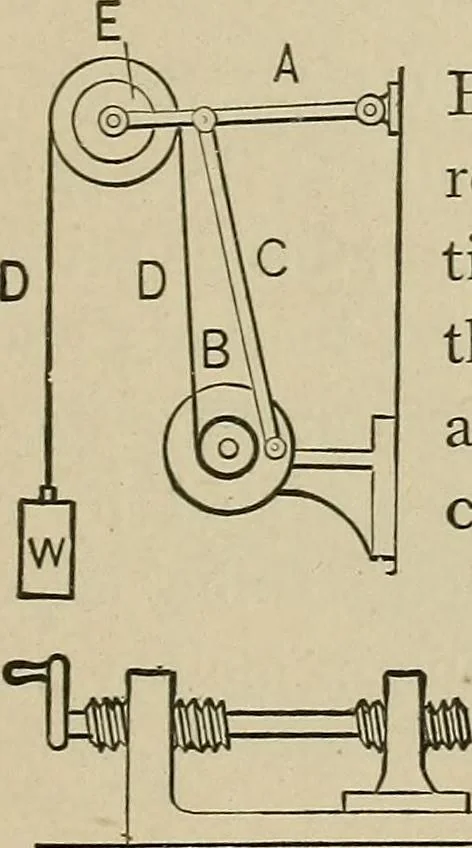

377. VIBRATING LIFT.—The revolving drumB lifts the weight W, while the crank-pin connectingrod C gives the arm A and sheave E a vibrating ver-tical movement. With certain proportions betweenthe size of the drum B, the distance of the crank pinand connecting arm at A, a variety of motions to thecord… … 334 MILL AND FACTORY APPLIANCES.
Mechanical movements
